Q-Audio Quad Headworn/Lapel Wireless Microphone System with Antenna Distribution
Q-Audio Quad Headworn/Lapel Wireless Microphone System with Antenna Distribution
Free Next Working Day Delivery for orders over £150 (order by 3.30pm Mon-Fri).
Overview
The Q-Audio QWM1970BP-4W is a complete professional 4-way wireless microphone package designed for venues, presenters, performers and commercial AV installations requiring reliable multi-channel wireless audio. Combining true diversity reception, bodypack transmitters and an integrated antenna distribution solution, the system delivers stable RF performance and flexible microphone options for speech, vocals and instruments.
Supplied with dual receivers, four bodypack transmitters, headworn microphones, lapel microphones, instrument cables and the QAD-4 antenna distribution unit, this package is ideal for conferences, theatres, schools, houses of worship, fitness instructors and live performance applications.
Complete 4-Way Wireless System

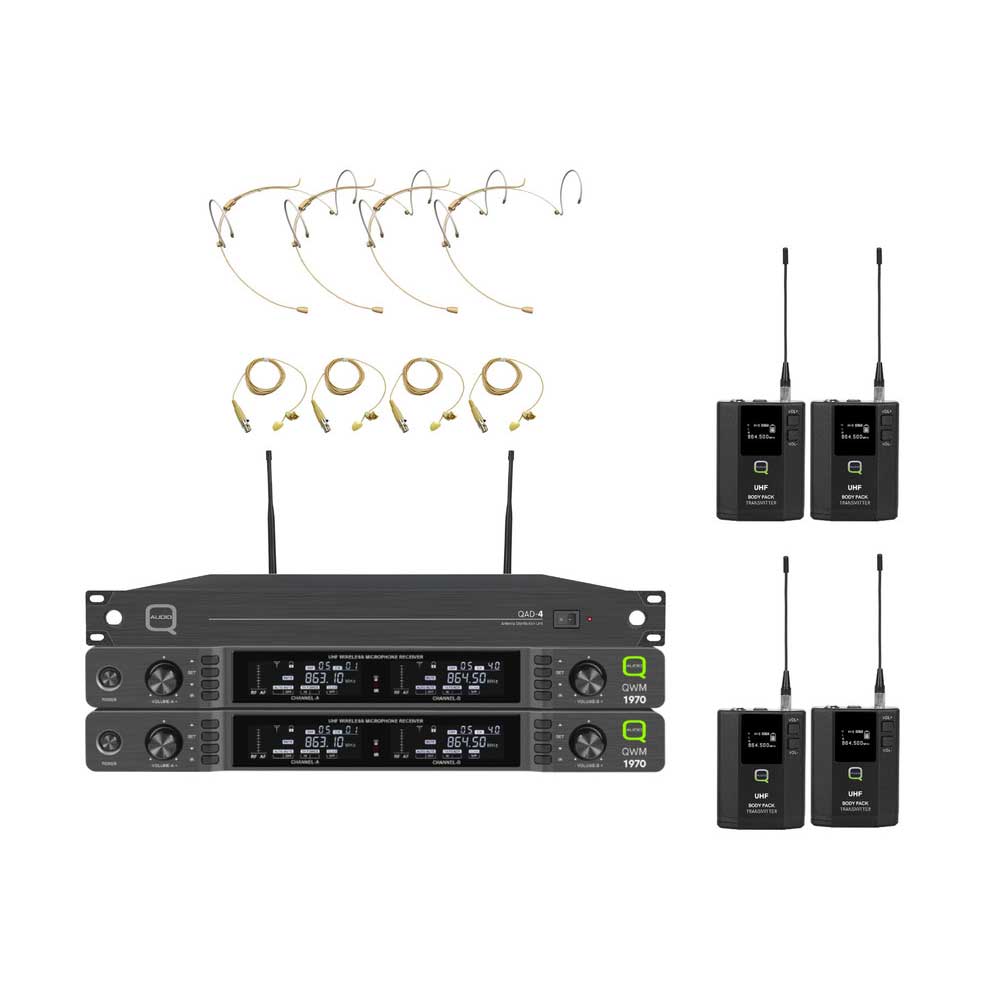

The QWM1970BP-4W package includes everything needed for professional multi-user wireless operation.
- 2 x QWM1970 dual true diversity receivers
- 4 x QWM1970BP bodypack transmitters
- 4 x beige headworn microphones
- 4 x beige lapel microphones
- 4 x instrument cables
- 1 x QAD-4 antenna distribution unit
Professional True Diversity Reception
The dual receivers use true diversity technology to provide stable wireless performance and minimise signal dropouts in busy RF environments.
- True diversity UHF reception
- Reduced interference and signal loss
- Reliable multi-channel operation
- Ideal for professional live applications
Flexible Microphone & Instrument Use
Each bodypack transmitter supports both microphones and instruments, making the system suitable for a wide range of applications.
- Headworn microphones for presentations and theatre
- Lapel microphones for discreet speech reinforcement
- Instrument cables for guitars and musical instruments
- TA-4 compatible bodypack connectivity
Channel 38 Professional Operation
The system operates on Channel 38 (606–614MHz), making it suitable for professional licensed wireless microphone applications in the UK.
- 606–614MHz UHF operation
- Professional licensed frequency band
- 8MHz operating bandwidth
- Reduced congestion compared to licence-free bands
Integrated Antenna Distribution
The included QAD-4 antenna distribution unit simplifies system setup while improving RF stability across all connected receivers.
- Dual 1:4 active antenna splitter
- Supports up to four diversity receivers
- Wideband UHF operation (450–1000MHz)
- Loop-through outputs for system expansion
- Integrated DC power distribution
Simple Setup & Synchronisation
IR sync technology enables fast and accurate transmitter setup for efficient system deployment.
- IR frequency synchronisation
- Fast transmitter pairing
- Simplified setup process
- Reliable channel configuration
Professional Audio Quality
Designed for clear and accurate audio reproduction across speech and music applications.
- 30Hz – 20kHz frequency response
- 96dB dynamic range
- <0.1% distortion
- Excellent signal-to-noise performance
Key Features
- Complete 4-way professional wireless microphone package
- True diversity dual receiver technology
- 4 x bodypack transmitters included
- Headworn, lapel and instrument microphone options
- QAD-4 antenna distribution system included
- Channel 38 professional UHF operation
- IR sync frequency setup
- Wide 30Hz – 20kHz frequency response
- Ideal for speech, theatre and live performance
- Suitable for professional AV installations
Specifications
| Specification | Details |
|---|---|
| System Type | Quad UHF True Diversity Wireless System |
| Operating Frequency | 606 – 614MHz (Channel 38) |
| Bandwidth | 8MHz |
| Receiver Type | True Diversity Dual Receiver |
| Frequency Response | 30Hz – 20kHz ±2dB |
| Dynamic Range | 96dB |
| Distortion | <0.1% |
| Receiving Sensitivity | -95dBm |
| Transmitter Type | Bodypack |
| Frequency Synchronisation | IR Sync |
| RF Output Power | Up to 30mW |
| Battery Requirement | 2 x AA per transmitter |
| Battery Life | >5 hours |
| Antenna Distribution Range | 450 – 1000MHz |
| Antenna Connections | BNC |
| Power Supply | 12V DC |
Applications
Perfect for conferences, schools, houses of worship, theatre productions, live events, fitness instruction, corporate presentations and multi-user professional wireless audio systems.
Q&A
Q: How many wireless channels are included?
A: The package includes four wireless bodypack channels.
Q: Are both headworn and lapel microphones included?
A: Yes, four headworn microphones and four lapel microphones are supplied.
Q: Can the system be used for instruments?
A: Yes, four instrument cables are included for wireless instrument use.
Q: What does the antenna distribution unit do?
A: The QAD-4 distributes antenna signals and power to multiple receivers for simplified setup and improved RF performance.
