Overview
The Q-Audio QWM1970HH-4W is a professional 4-channel true diversity wireless microphone package designed for live performances, presentations, conferences and commercial AV installations. Combining reliable UHF wireless performance with handheld microphone flexibility and integrated antenna distribution, this complete package is ideal for multi-user professional audio applications.

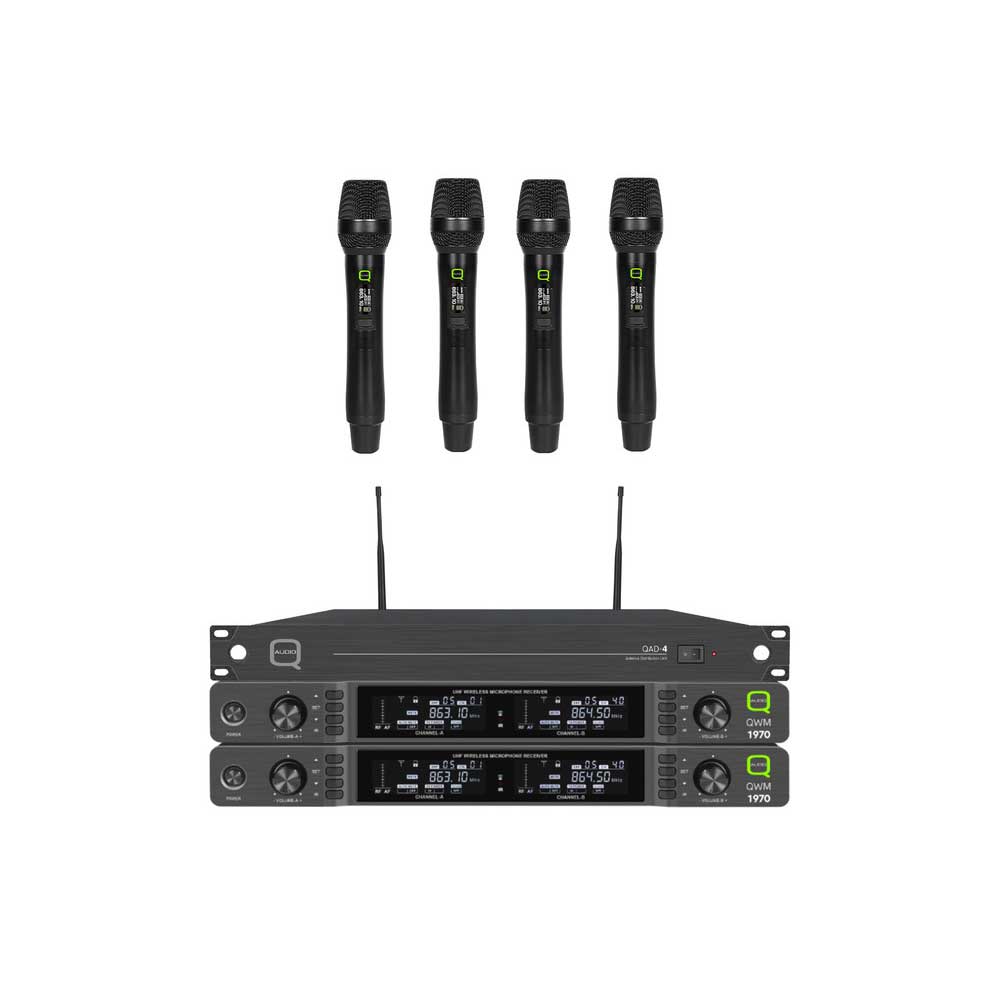

The system includes two dual-channel true diversity receivers, four handheld wireless transmitters and the QAD-4 antenna distribution unit with BNC cabling for simplified installation and improved RF stability.
Complete 4-Way Handheld Wireless System
Designed as a complete multi-channel solution, the QWM1970HH-4W provides everything required for professional wireless handheld microphone operation.
- 2 x QWM1970 dual true diversity receivers
- 4 x QWM1970 handheld transmitters
- 1 x QAD-4 antenna distribution unit
- BNC antenna connection cables included

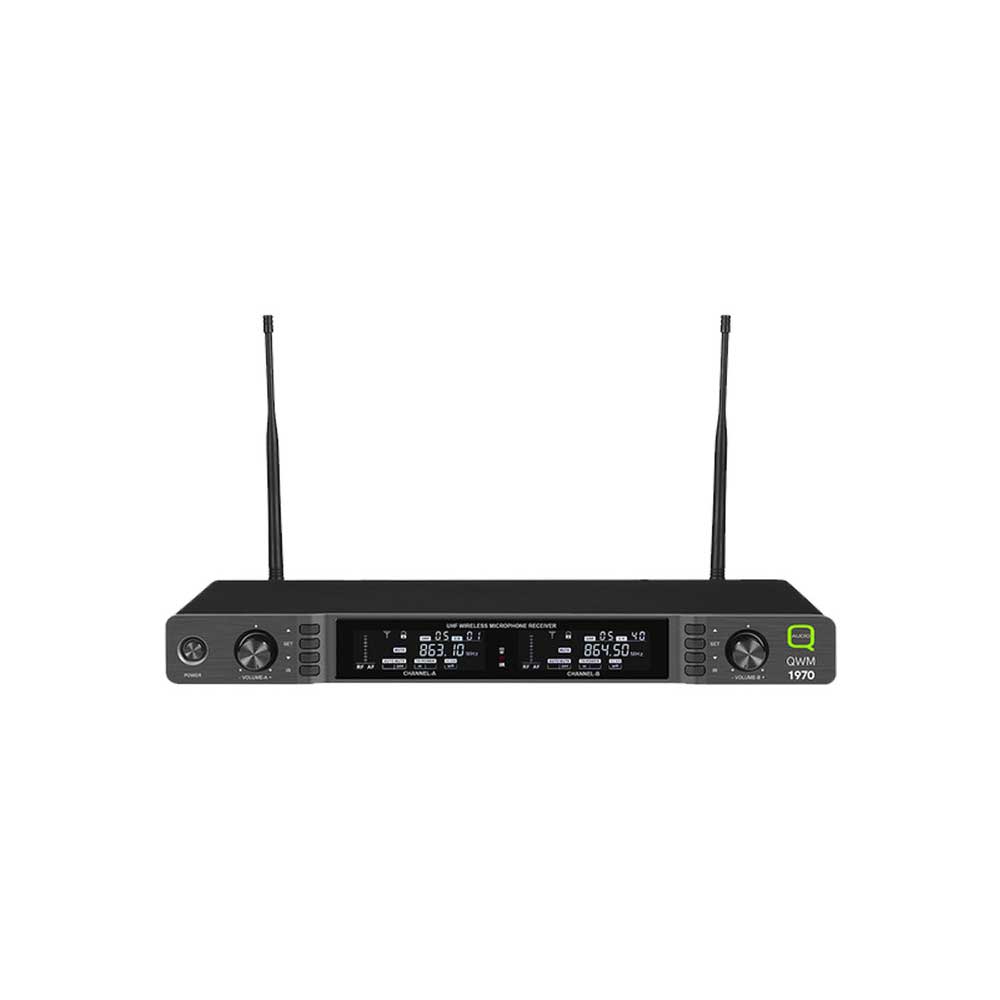

Professional True Diversity Reception
The dual receivers utilise true diversity technology to deliver stable reception and minimise interference or signal dropouts in demanding RF environments.
- True diversity UHF wireless technology
- Stable signal reception
- Reduced dropouts and interference
- Reliable multi-channel wireless operation

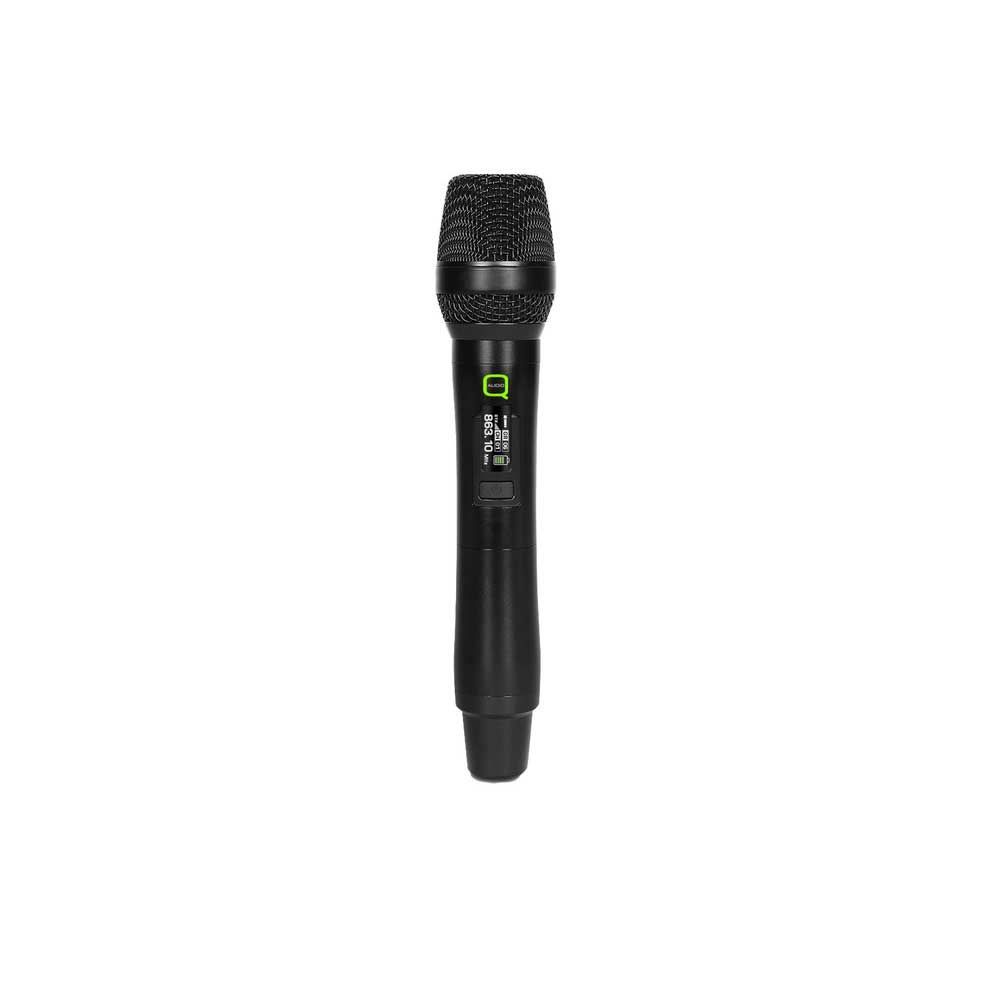

Professional Handheld Transmitters
The supplied handheld transmitters provide dependable wireless vocal performance for presenters, performers and public speakers.
- Professional wireless handheld transmitters
- IR frequency synchronisation
- Up to 30mW RF output power
- Long battery life exceeding 5 hours
Channel 38 UHF Operation
Operating within Channel 38 (606–614MHz), the system is suitable for professional licensed wireless microphone applications in the UK.
- 606–614MHz UHF frequency range
- Professional licensed wireless band
- 8MHz operating bandwidth
- Suitable for larger professional wireless systems

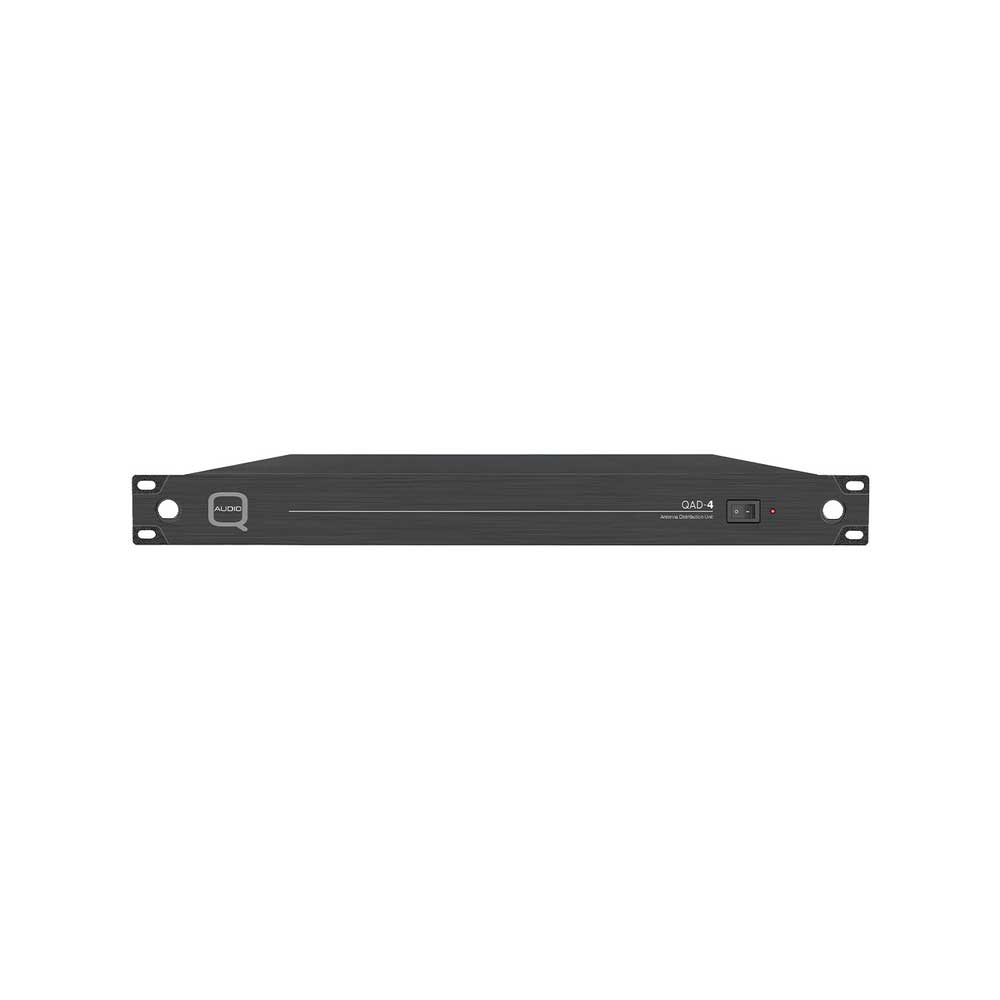

Integrated Antenna Distribution
The included QAD-4 antenna distribution system simplifies setup while improving RF performance and reducing cable clutter.
- Dual 1:4 active antenna splitter
- Supports up to four diversity receivers
- Wideband UHF operation from 450–1000MHz
- Loop-through outputs for expansion
- Integrated DC power distribution
Fast IR Synchronisation
IR sync technology allows fast pairing between transmitters and receivers for simple system setup and deployment.
- Quick transmitter pairing
- Accurate frequency synchronisation
- Easy setup for multi-channel systems
- Reduced configuration time
Professional Audio Performance
The QWM1970HH-4W is designed to deliver clear and natural sound reproduction across speech and vocal applications.
- 30Hz – 20kHz frequency response
- 96dB dynamic range
- <0.1% distortion
- High signal-to-noise performance
Key Features
- Complete 4-way handheld wireless microphone package
- True diversity UHF wireless technology
- 4 x handheld wireless transmitters included
- QAD-4 antenna distribution system supplied
- Professional Channel 38 operation
- IR sync transmitter setup
- Reliable multi-channel RF performance
- Wide frequency response for clear audio
- Ideal for live sound, conferences and presentations
- Suitable for professional AV installations
Specifications
| Specification | Details |
|---|---|
| System Type | Quad UHF True Diversity Wireless System |
| Operating Frequency | 606 – 614MHz (Channel 38) |
| Bandwidth | 8MHz |
| Receiver Type | True Diversity Dual Receiver |
| Frequency Response | 30Hz – 20kHz ±2dB |
| Dynamic Range | 96dB |
| Distortion | <0.1% |
| Receiving Sensitivity | -95dBm |
| Transmitter Type | Wireless Handheld |
| Frequency Synchronisation | IR Sync |
| RF Output Power | Up to 30mW |
| Battery Requirement | 2 x AA per transmitter |
| Battery Life | >5 hours |
| Antenna Distribution Range | 450 – 1000MHz |
| Antenna Connections | BNC |
| Power Supply | 12V DC |
Applications
Ideal for conferences, live performances, schools, houses of worship, event venues, public speaking, entertainment venues and professional AV installations requiring multiple handheld wireless microphones.
Q&A
Q: How many wireless microphones are included?
A: The system includes four wireless handheld transmitters.
Q: What frequency range does the system use?
A: The system operates on Channel 38 between 606–614MHz.
Q: What is true diversity technology?
A: True diversity uses dual receiver circuits to minimise interference and improve wireless signal reliability.
Q: What does the QAD-4 antenna distribution unit do?
A: It distributes antenna signals and DC power to multiple receivers for cleaner installation and improved RF performance.
