Q-Audio 8-Way Headworn & Lapel Wireless Microphone System with ADU
Q-Audio 8-Way Headworn & Lapel Wireless Microphone System with ADU
Free Next Working Day Delivery for orders over £150 (order by 3.30pm Mon-Fri).
Overview
The Q-Audio QWM1970BP-8W is a complete professional 8-channel true diversity wireless microphone system designed for demanding multi-user environments including theatres, conference venues, schools, houses of worship, fitness studios and live performance applications.

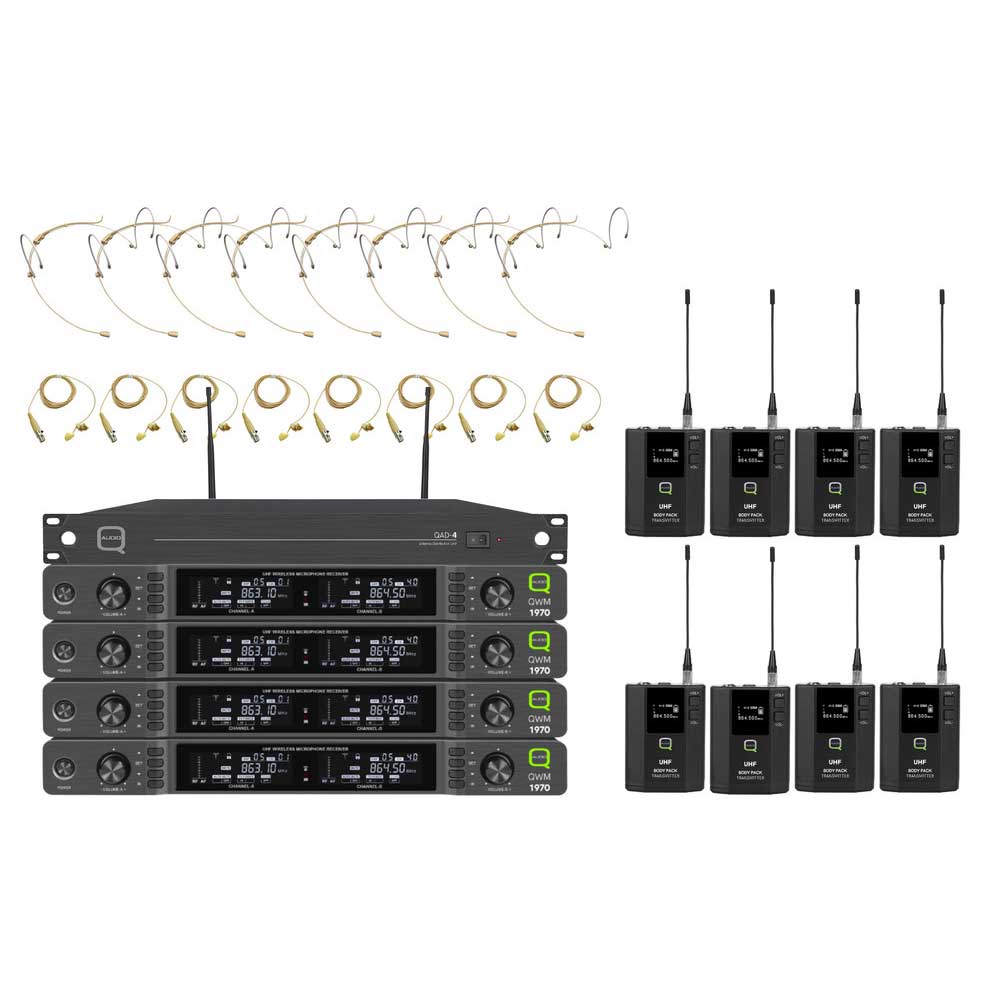

Supplied with four dual-channel true diversity receivers, eight bodypack transmitters, eight headworn microphones, eight lapel microphones, eight instrument cables and a QAD-4 antenna distribution unit, this package delivers reliable wireless audio performance with exceptional flexibility for speech, vocals and instruments.
Complete 8-Way Wireless Package
The QWM1970BP-8W includes all components required for professional multi-channel wireless microphone operation.
- 4 x QWM1970 dual true diversity receivers

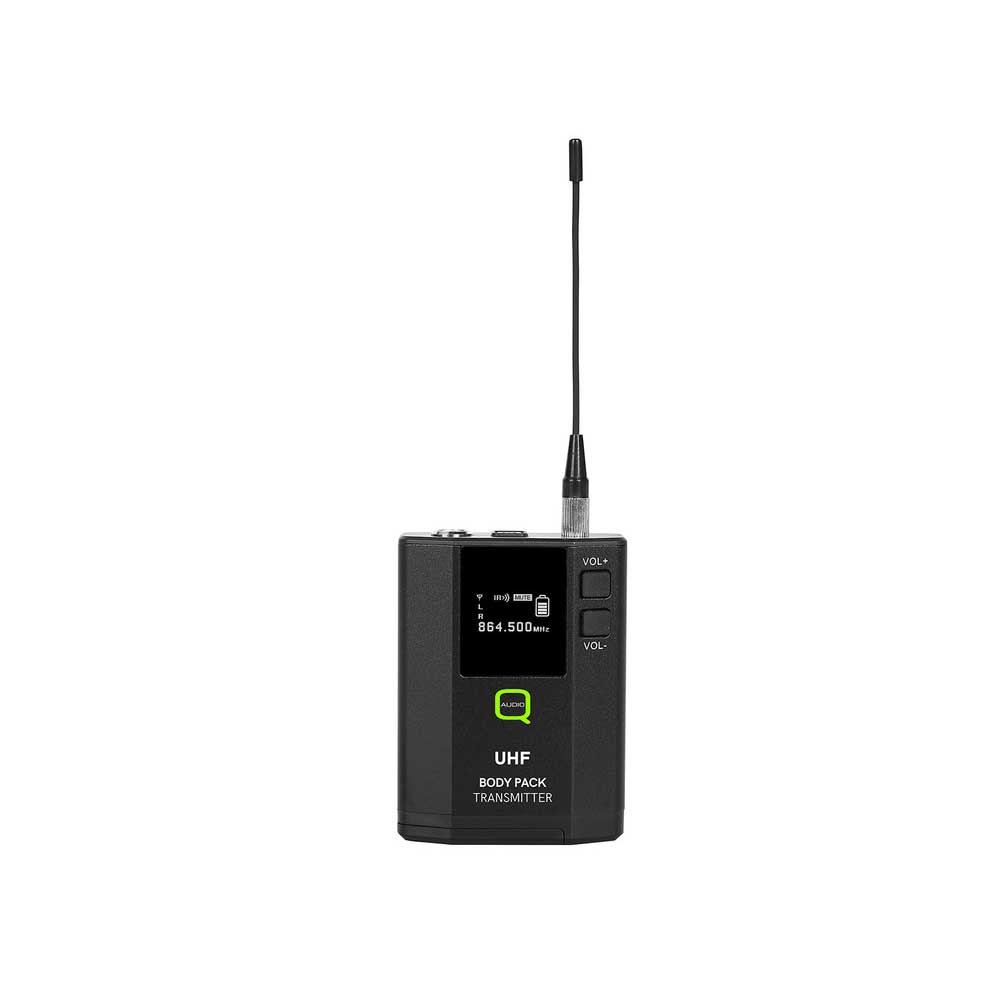

- 8 x QWM1970BP bodypack transmitters
- 8 x beige headworn microphones
- 8 x beige lapel microphones
- 8 x instrument cables
- 1 x QAD-4 antenna distribution unit
- BNC antenna cables included
Professional True Diversity Technology
The supplied receivers use true diversity wireless technology to minimise RF interference and maintain stable signal performance across all channels.
- True diversity UHF wireless reception
- Reduced dropouts and interference
- Stable multi-channel RF performance
- Reliable operation in busy wireless environments
Flexible Microphone & Instrument Connectivity
Each bodypack transmitter supports microphones and instruments, making the system suitable for a wide range of professional audio applications.
- Headworn microphones for theatre and presentations
- Lapel microphones for discreet speech reinforcement
- Instrument cables for guitars and instruments
- Suitable for presenters, performers and musicians
Professional Channel 38 Operation
Operating within the licensed Channel 38 UHF band, the system is ideal for professional wireless microphone applications throughout the UK.
- 606 – 614MHz operating frequency range
- Professional licensed wireless band
- 8MHz operating bandwidth
- Suitable for large multi-channel systems
Integrated Antenna Distribution System
The included QAD-4 antenna distribution unit helps simplify installation while improving RF performance and reducing cable clutter.
- Dual 1:4 active antenna splitter
- Supports up to four diversity receivers
- Wideband UHF operation from 450–1000MHz
- Loop-through outputs for expansion
- Integrated DC power distribution
Fast IR Synchronisation
IR sync technology enables fast and accurate transmitter pairing with the receivers for quick and simple setup.
- Fast transmitter synchronisation
- Simple frequency pairing
- Reduced installation time
- Reliable wireless configuration
Professional Audio Quality
The QWM1970BP-8W delivers clear and natural sound quality suitable for speech, vocals and instrument applications.
- 30Hz – 20kHz frequency response
- 96dB dynamic range
- <0.1% distortion
- Excellent signal-to-noise performance
Key Features
- Complete 8-way wireless microphone package
- Professional true diversity UHF system
- 8 x bodypack transmitters included
- Headworn, lapel and instrument connectivity
- QAD-4 antenna distribution system supplied
- Professional Channel 38 wireless operation
- IR sync transmitter setup
- Wide 30Hz – 20kHz frequency response
- Ideal for theatre, conferences and live events
- Suitable for professional AV installations
Specifications
| Specification | Details |
|---|---|
| System Type | 8-Way UHF True Diversity Wireless System |
| Operating Frequency | 606 – 614MHz (Channel 38) |
| Bandwidth | 8MHz |
| Receiver Type | True Diversity Dual Receiver |
| Frequency Response | 30Hz – 20kHz ±2dB |
| Dynamic Range | 96dB |
| Distortion | <0.1% |
| Receiving Sensitivity | -95dBm |
| Transmitter Type | Bodypack |
| Frequency Synchronisation | IR Sync |
| RF Output Power | Up to 30mW |
| Battery Requirement | 2 x AA per transmitter |
| Battery Life | >5 hours |
| Antenna Distribution Range | 450 – 1000MHz |
| Antenna Connections | BNC |
| Power Supply | 12V DC |
Applications
Ideal for theatres, conferences, schools, churches, fitness studios, live productions, public speaking and professional AV installations requiring multiple hands-free wireless microphone channels.
Q&A
Q: How many wireless channels are included?
A: The package includes eight wireless bodypack microphone channels.
Q: Are headworn and lapel microphones included?
A: Yes, the system includes eight headworn microphones and eight lapel microphones.
Q: Can the bodypacks be used with instruments?
A: Yes, eight instrument cables are supplied for guitars and compatible instruments.
Q: What does the QAD-4 antenna distribution unit do?
A: The QAD-4 distributes antenna signals and DC power to multiple receivers for simplified installation and improved RF stability.
