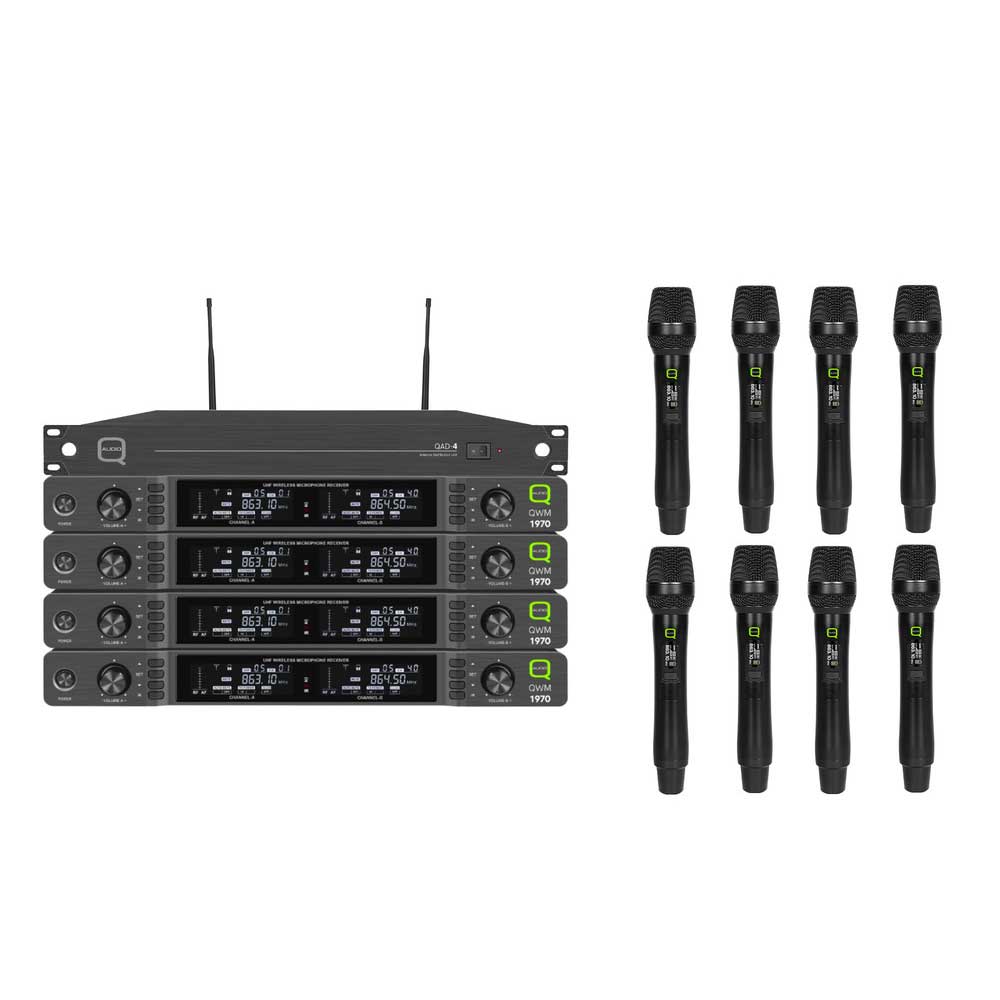

Q-Audio 8-Way Handheld Wireless Microphone System with ADU
Q-Audio 8-Way Handheld Wireless Microphone System with ADU
Free Next Working Day Delivery for orders over £150 (order by 3.30pm Mon-Fri).
Overview
The Q-Audio QWM1970HH-8W is a complete professional 8-channel true diversity wireless microphone system designed for live performance, conferences, worship venues, education, corporate events and professional AV installations.
Supplied with four dual-channel true diversity receivers, eight handheld wireless transmitters and a QAD-4 antenna distribution unit, this package delivers reliable RF performance, clear audio reproduction and simplified multi-channel wireless microphone management.
Complete 8-Way Wireless Package
The QWM1970HH-8W includes all core components required for professional multi-channel wireless microphone operation.
- 4 x QWM1970 dual true diversity receivers
- 8 x handheld wireless transmitters
- 1 x QAD-4 antenna distribution unit
- BNC antenna cables included
Professional True Diversity Reception
The included true diversity receivers provide stable wireless signal performance by minimising interference and reducing signal dropouts in demanding RF environments.
- True diversity UHF wireless technology
- Improved signal reliability
- Reduced interference and dropouts
- Ideal for multi-channel professional installations
Professional Handheld Transmitters
The supplied handheld transmitters are designed for vocal clarity, ease of use and dependable wireless performance for presenters, performers and event professionals.
- Professional UHF handheld transmitters
- Fast IR frequency synchronisation
- Up to 30mW RF output power
- Over 5 hours battery life
- Powered by 2 x AA batteries
Licensed Channel 38 Operation
Operating on the professional UK Channel 38 frequency band, the QWM1970HH-8W is suitable for larger wireless microphone systems requiring dependable RF performance.
- 606 – 614MHz operating range
- Professional licensed wireless operation
- 8MHz bandwidth
- Suitable for larger venues and productions
Integrated Antenna Distribution
The included QAD-4 antenna distribution unit simplifies installation by distributing antenna signals and power to multiple receivers while improving overall RF system stability.
- Dual 1:4 active antenna splitter
- Supports up to four diversity receivers
- Wideband UHF operation from 450–1000MHz
- Integrated DC power distribution
- Loop-through outputs for future expansion
Professional Audio Performance
Designed for clear and natural voice reproduction, the QWM1970HH-8W delivers professional sound quality suitable for speech and live vocal applications.
- 30Hz – 20kHz frequency response
- 96dB dynamic range
- <0.1% distortion
- Excellent signal-to-noise performance
Key Features
- Complete 8-way handheld wireless microphone package
- Professional true diversity UHF wireless system
- 8 x handheld wireless transmitters included
- QAD-4 antenna distribution system supplied
- Professional Channel 38 wireless operation
- Fast IR sync frequency setup
- Wide 30Hz – 20kHz frequency response
- Reliable multi-channel RF performance
- Ideal for live events, presentations and installations
- Suitable for professional AV and stage applications
Specifications
| Specification | Details |
|---|---|
| System Type | 8-Way UHF True Diversity Wireless System |
| Operating Frequency | 606 – 614MHz (Channel 38) |
| Bandwidth | 8MHz |
| Receiver Type | True Diversity Dual Receiver |
| Frequency Response | 30Hz – 20kHz ±2dB |
| Dynamic Range | 96dB |
| Distortion | <0.1% |
| Receiving Sensitivity | -95dBm |
| Transmitter Type | Handheld |
| Frequency Synchronisation | IR Sync |
| RF Output Power | Up to 30mW |
| Battery Requirement | 2 x AA per transmitter |
| Battery Life | >5 hours |
| Antenna Distribution Range | 450 – 1000MHz |
| Antenna Connections | BNC |
| Power Supply | 12V DC |
Applications
Ideal for live performances, theatres, conference venues, churches, schools, public speaking, entertainment venues and professional AV installations requiring multiple wireless handheld microphones.
Q&A
Q: How many wireless microphones are included?
A: The package includes eight handheld wireless microphone transmitters.
Q: What frequency band does the system operate on?
A: The system operates on Channel 38 between 606 – 614MHz.
Q: What does true diversity mean?
A: True diversity technology uses dual receiver circuits and antennas to improve signal reliability and reduce dropouts.
Q: What is the purpose of the QAD-4 antenna distribution unit?
A: The QAD-4 distributes antenna signals and DC power to multiple receivers for simplified installation and improved RF stability.
