Overview
The Q-Audio QWM1970BP-6W is a complete professional 6-channel true diversity wireless microphone system designed for venues, schools, theatres, houses of worship, conferences and live performance environments requiring reliable multi-user wireless audio.

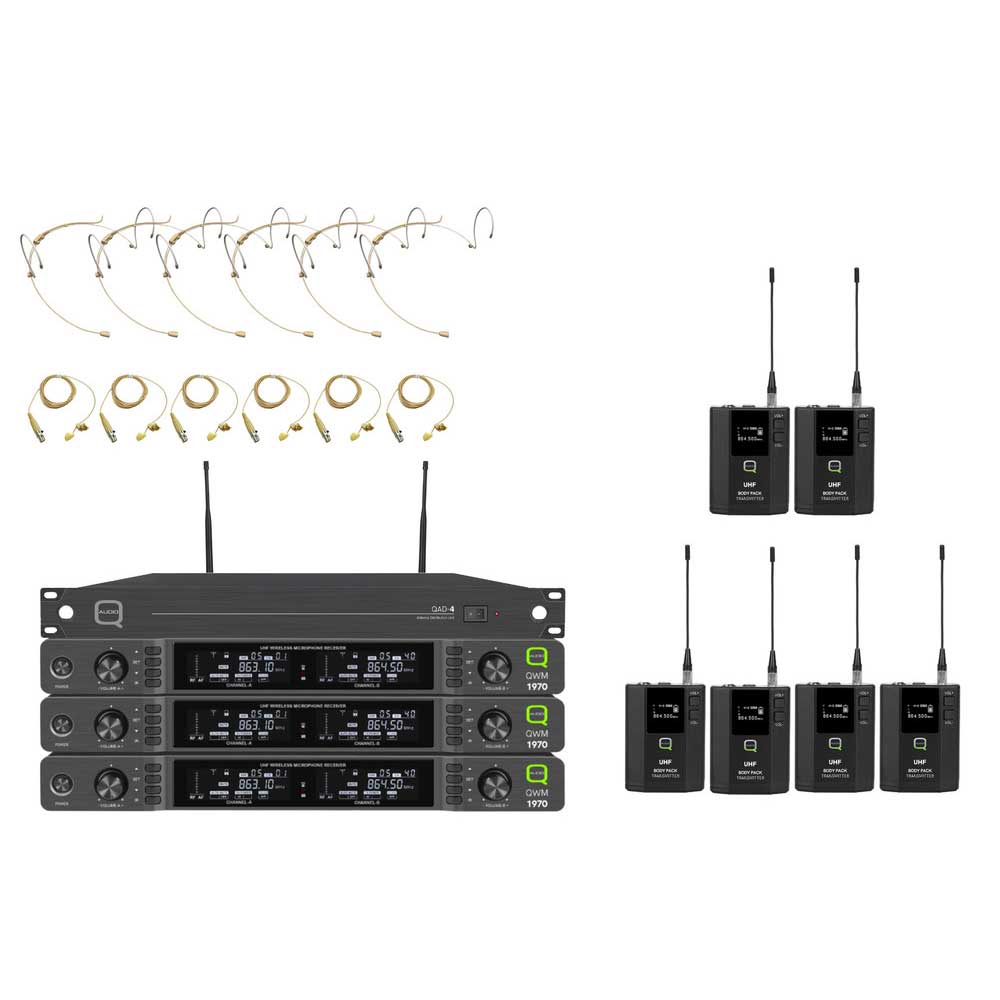

Supplied with three dual-channel true diversity receivers, six bodypack transmitters, six headworn microphones, six lapel microphones, six instrument cables and a QAD-4 antenna distribution unit, the system provides exceptional flexibility for speech, presentation, vocal and instrument applications.
Complete 6-Way Wireless Package
The QWM1970BP-6W includes everything required for professional multi-channel wireless microphone operation.
- 3 x QWM1970 dual true diversity receivers
- 6 x QWM1970BP bodypack transmitters
- 6 x beige headworn microphones
- 6 x beige lapel microphones
- 6 x instrument cables
- 1 x QAD-4 antenna distribution unit
- BNC antenna connection cables included
Professional True Diversity Wireless Technology
Each receiver uses true diversity technology to minimise RF interference and maintain stable wireless performance in busy environments.
- True diversity UHF reception
- Improved signal stability
- Reduced dropouts and interference
- Reliable multi-channel operation
Flexible Microphone & Instrument Connectivity
The included bodypack transmitters support both microphones and instruments, making the system ideal for a wide range of professional applications.
- Headworn microphones for theatre and presentations
- Lapel microphones for discreet speech reinforcement
- Instrument cables for guitars and musical instruments
- Suitable for presenters, performers and musicians
Professional Channel 38 Operation
Operating within the licensed Channel 38 UHF band, the system is suitable for demanding professional wireless applications throughout the UK.
- 606 – 614MHz UHF operation
- Professional licensed frequency range
- 8MHz operating bandwidth
- Suitable for larger multi-channel systems
Integrated Antenna Distribution System
The supplied QAD-4 antenna distribution unit simplifies installation while helping maintain reliable RF performance across all receivers.
- Dual 1:4 active antenna splitter
- Supports up to four diversity receivers
- Wideband UHF operation from 450–1000MHz
- Loop-through outputs for system expansion
- Integrated DC power distribution
Fast IR Synchronisation
IR sync technology allows quick and simple transmitter pairing with the receivers for fast setup and efficient deployment.
- Fast transmitter pairing
- Simple frequency synchronisation
- Reduced setup time
- Reliable channel configuration
Professional Audio Performance
The QWM1970BP-6W delivers high-quality sound suitable for both speech and musical performance applications.
- 30Hz – 20kHz frequency response
- 96dB dynamic range
- <0.1% distortion
- Clear and natural audio reproduction
Key Features
- Complete 6-way wireless microphone package
- Professional true diversity UHF system
- 6 x bodypack transmitters included
- Headworn, lapel and instrument connectivity
- QAD-4 antenna distribution unit supplied
- Professional Channel 38 operation
- IR sync transmitter setup
- Wide 30Hz – 20kHz frequency response
- Ideal for theatre, conferences and live events
- Suitable for professional AV installations
Specifications
| Specification | Details |
|---|---|
| System Type | 6-Way UHF True Diversity Wireless System |
| Operating Frequency | 606 – 614MHz (Channel 38) |
| Bandwidth | 8MHz |
| Receiver Type | True Diversity Dual Receiver |
| Frequency Response | 30Hz – 20kHz ±2dB |
| Dynamic Range | 96dB |
| Distortion | <0.1% |
| Receiving Sensitivity | -95dBm |
| Transmitter Type | Bodypack |
| Frequency Synchronisation | IR Sync |
| RF Output Power | Up to 30mW |
| Battery Requirement | 2 x AA per transmitter |
| Battery Life | >5 hours |
| Antenna Distribution Range | 450 – 1000MHz |
| Antenna Connections | BNC |
| Power Supply | 12V DC |
Applications
Ideal for conferences, schools, churches, theatres, fitness instruction, live performances, public speaking and professional AV installations requiring multiple hands-free wireless microphones.
Q&A
Q: How many wireless channels are included?
A: The package includes six wireless bodypack microphone channels.
Q: Are both headworn and lapel microphones included?
A: Yes, six headworn microphones and six lapel microphones are supplied.
Q: Can the system be used with instruments?
A: Yes, six instrument cables are included for guitars and other compatible instruments.
Q: What does the QAD-4 antenna distribution unit do?
A: The QAD-4 distributes antenna signals and DC power to multiple receivers, improving installation and RF stability.
