Q-Audio 6 Way Hand Held Wireless Mic System with ADU
Q-Audio 6 Way Hand Held Wireless Mic System with ADU
Free Next Working Day Delivery for orders over £150 (order by 3.30pm Mon-Fri).
Overview
The Q-Audio QWM1970HH-6W is a professional 6-channel true diversity wireless microphone package designed for live sound, conferences, entertainment venues, houses of worship, schools and commercial AV installations requiring reliable multi-user wireless performance.

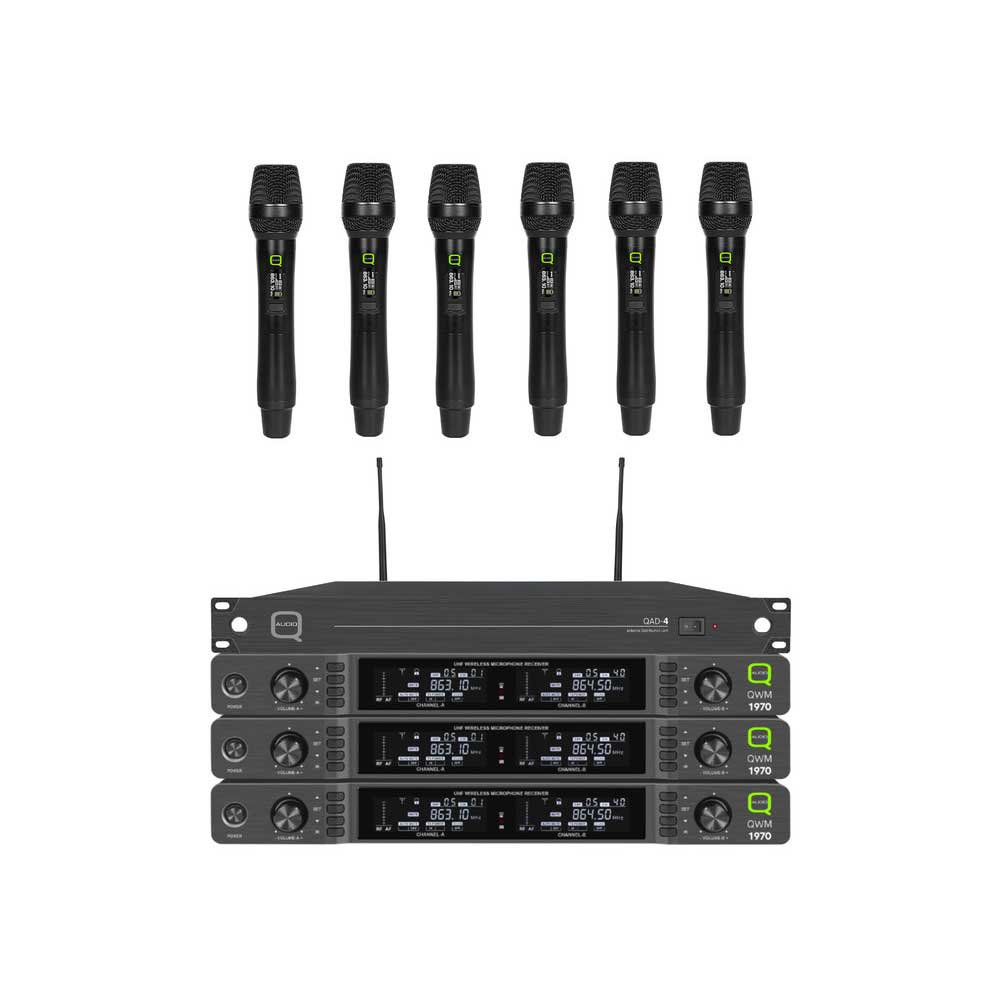

This complete system includes three dual-channel true diversity receivers, six wireless handheld transmitters and the QAD-4 antenna distribution unit with BNC cabling for simplified installation and dependable RF stability across all channels.
Complete 6-Way Wireless Handheld Package
The QWM1970HH-6W provides a complete professional wireless microphone solution for multi-user vocal and presentation applications.
- 3 x QWM1970 dual true diversity receivers
- 6 x QWM1970 handheld transmitters
- 1 x QAD-4 antenna distribution unit
- BNC antenna connection cables included
Professional True Diversity Technology
The dual receivers utilise true diversity wireless technology to reduce interference and maintain stable reception in demanding RF environments.
- True diversity UHF wireless operation
- Improved signal reliability
- Reduced dropouts and interference
- Stable multi-channel performance
Professional Handheld Wireless Transmitters
The included handheld transmitters are designed for clear vocal reproduction and dependable operation during live use.
- Wireless handheld microphone transmitters
- IR frequency synchronisation
- Up to 30mW RF output power
- Battery life exceeding 5 hours
Channel 38 UHF Operation
Operating within the professional Channel 38 UHF band, the system is suitable for licensed wireless microphone use throughout the UK.
- 606 – 614MHz frequency range
- Professional licensed wireless operation
- 8MHz operating bandwidth
- Suitable for larger wireless setups
Integrated Antenna Distribution
The supplied QAD-4 antenna distribution system helps simplify installation while improving RF performance and reducing cabling complexity.
- Dual 1:4 active antenna splitter
- Supports up to four diversity receivers
- Wideband UHF operation from 450–1000MHz
- Loop-through outputs for expansion
- Integrated DC power distribution
Fast IR Synchronisation
IR sync technology enables fast and accurate pairing between transmitters and receivers for quick system setup.
- Quick transmitter setup
- Simple frequency matching
- Reduced installation time
- Reliable wireless configuration
Professional Audio Quality
The QWM1970HH-6W delivers clear and natural audio performance suitable for both speech and vocal applications.
- 30Hz – 20kHz frequency response
- 96dB dynamic range
- <0.1% distortion
- High signal-to-noise performance
Key Features
- Complete 6-way handheld wireless microphone package
- Professional true diversity UHF system
- 6 x wireless handheld transmitters included
- QAD-4 antenna distribution unit supplied
- Professional Channel 38 operation
- IR sync transmitter setup
- Reliable multi-channel RF performance
- Wide frequency response for clear sound
- Ideal for conferences, live sound and presentations
- Suitable for professional AV installations
Specifications
| Specification | Details |
|---|---|
| System Type | 6-Way UHF True Diversity Wireless System |
| Operating Frequency | 606 – 614MHz (Channel 38) |
| Bandwidth | 8MHz |
| Receiver Type | True Diversity Dual Receiver |
| Frequency Response | 30Hz – 20kHz ±2dB |
| Dynamic Range | 96dB |
| Distortion | <0.1% |
| Receiving Sensitivity | -95dBm |
| Transmitter Type | Wireless Handheld |
| Frequency Synchronisation | IR Sync |
| RF Output Power | Up to 30mW |
| Battery Requirement | 2 x AA per transmitter |
| Battery Life | >5 hours |
| Antenna Distribution Range | 450 – 1000MHz |
| Antenna Connections | BNC |
| Power Supply | 12V DC |
Applications
Ideal for conferences, schools, churches, entertainment venues, theatres, public speaking events and professional AV installations requiring multiple wireless handheld microphones.
Q&A
Q: How many handheld microphones are included?
A: The package includes six wireless handheld transmitters.
Q: What frequency range does the system operate on?
A: The system operates on Channel 38 between 606–614MHz.
Q: What is true diversity technology?
A: True diversity technology uses dual receiver circuits to minimise signal dropouts and improve wireless reliability.
Q: What does the QAD-4 antenna distribution unit do?
A: The QAD-4 distributes antenna signals and DC power to multiple receivers for simplified installation and improved RF stability.
