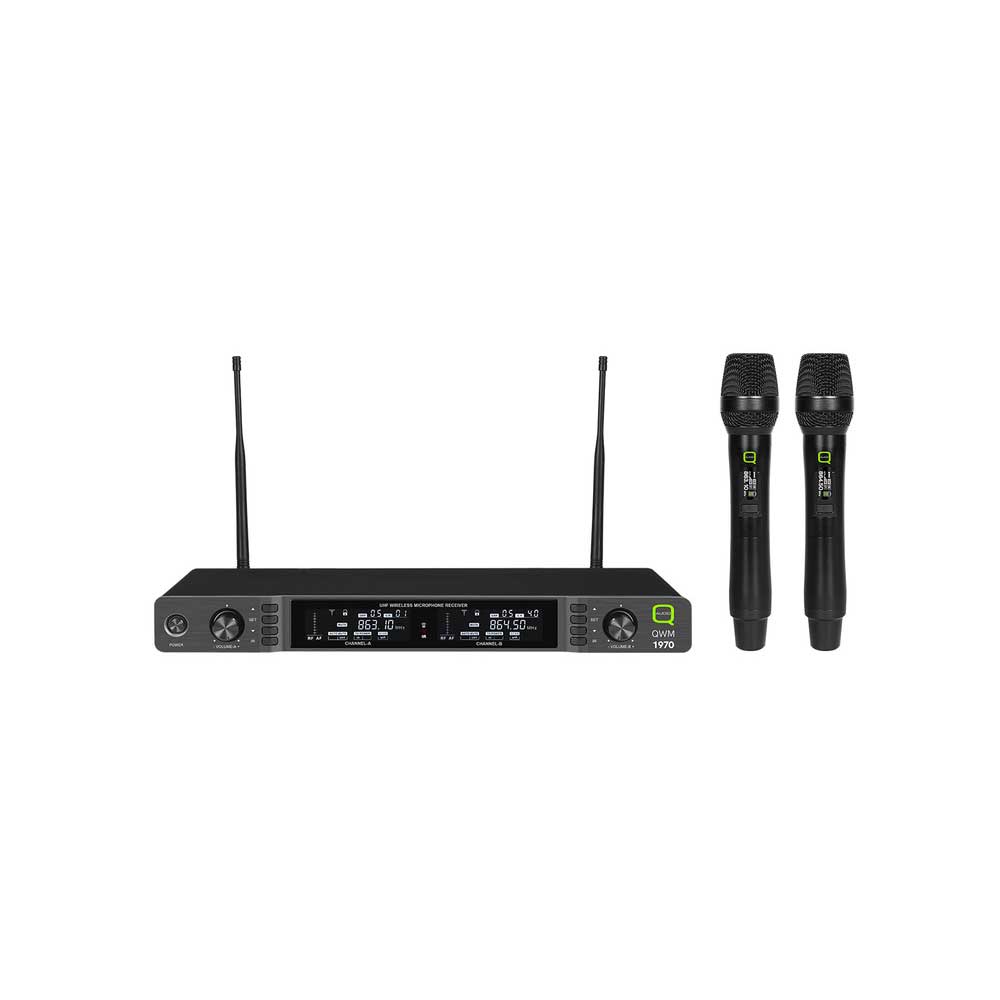

QWM 1970 HH Dual Channel UHF Handheld Wireless Microphone System
QWM 1970 HH Dual Channel UHF Handheld Wireless Microphone System
Free Next Working Day Delivery for orders over £150 (order by 3.30pm Mon-Fri).
Overview
The QWM 1970 HH Dual Channel UHF Wireless System delivers professional-grade wireless audio performance with two dynamic handheld microphones, making it ideal for live performances, presentations and events requiring multiple vocalists or speakers.
Combining affordability with high-quality engineering, this system offers clear, stable and reliable wireless transmission. With selectable UHF frequencies, true diversity reception and a wide frequency response, the QWM 1970 HH ensures consistent, distortion-free audio in a variety of environments.

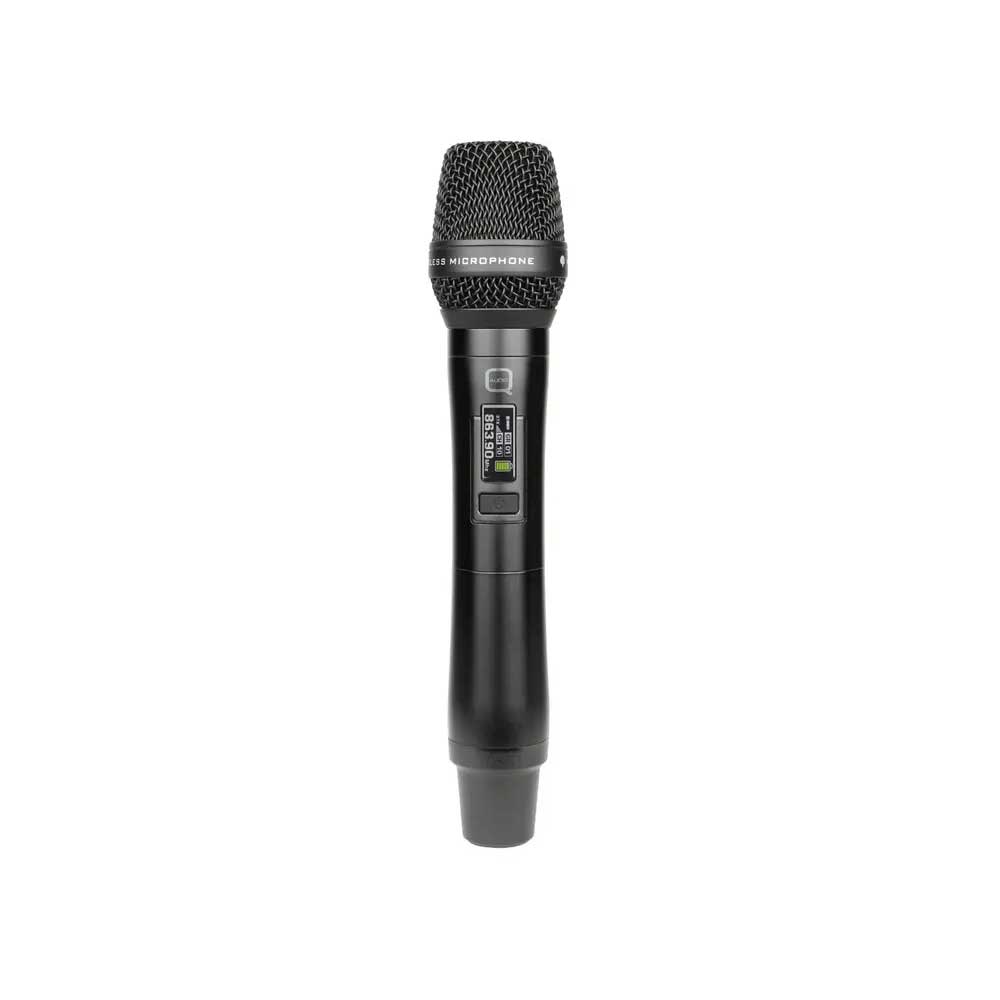

Dual Handheld Microphone System
The system includes two dynamic handheld transmitters, providing a complete solution for dual presenters, singers or performers.
- 2 × dynamic handheld microphones
- Ideal for vocals, presentations and events
- Robust and reliable performance
Professional Audio Quality
With a wide frequency response and high signal-to-noise ratio, the QWM 1970 HH delivers detailed and natural sound reproduction across the full audio spectrum.
- Frequency response: 30 Hz – 20 kHz
- Signal-to-noise ratio up to 96 dB
- Low distortion <0.1%
True Diversity Reception
The dual-channel diversity receiver ensures stable wireless performance by reducing dropouts and interference, making it suitable for professional use in demanding environments.
- Dual-channel diversity receiver
- Reliable RF signal stability
- Enhanced interference resistance
Flexible Frequency Selection
The system offers selectable UHF frequency bands, allowing operation in licence-free or licensed ranges depending on the region and application.
- Selectable frequencies: 863–865 MHz or 606–614 MHz
- IR sync for quick and easy setup
- Adjustable bandwidth options

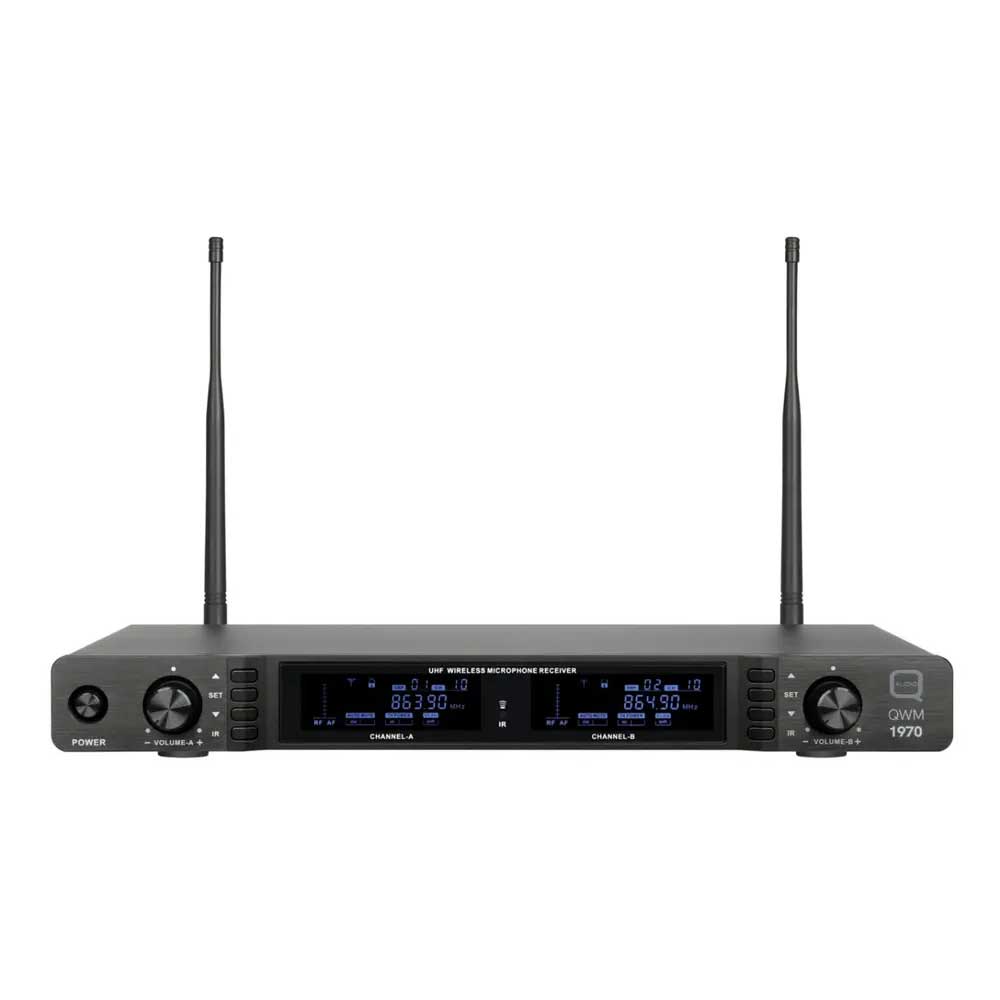

Rack-Mountable Receiver
The included 19" rack mounting hardware makes it easy to integrate the receiver into professional AV racks for touring, installations or fixed setups.
- 19" rack-mountable receiver
- Professional installation ready
- Rear-to-front antenna kit for convenience

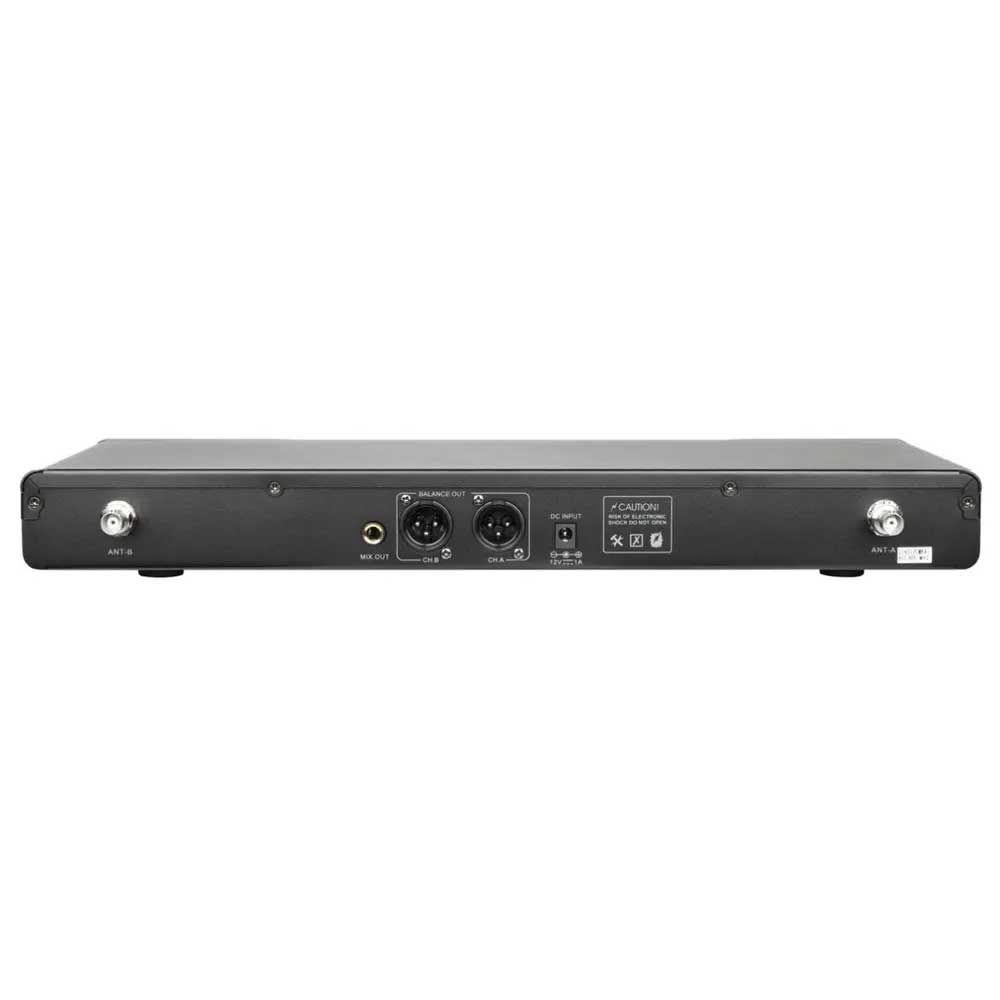

Versatile Output Connections
The receiver provides both balanced and unbalanced outputs, ensuring compatibility with mixers, amplifiers and PA systems.
- 2 × balanced XLR outputs
- 1 × mixed 6.3 mm jack output
Key Features
- Dual channel UHF wireless microphone system
- Includes 2 dynamic handheld transmitters
- True diversity receiver for stable signal
- Wide frequency response (30 Hz – 20 kHz)
- High signal-to-noise ratio for clear audio
- Selectable UHF frequency bands
- IR sync for fast setup
- Rack-mountable 19" receiver
- Balanced XLR and unbalanced outputs
Specifications
| Specification | Details |
|---|---|
| System Type | Dual channel UHF handheld wireless system |
| Receiver Frequency Range | 863–865 MHz or 606–614 MHz |
| Bandwidth | 2 MHz or 8 MHz (frequency dependent) |
| Frequency Response | 30 Hz – 20 kHz ±2 dB |
| Signal-to-Noise Ratio | Up to 96 dB |
| Distortion | <0.1% |
| Receiving Sensitivity | -95 dBm |
| Audio Outputs | 2 × XLR (balanced), 1 × 6.3 mm jack (mixed) |
| Transmitter Power | Up to 30 mW |
| Battery Type | 2 × AA per handheld |
| Battery Life | >5 hours |
| Power Supply (Receiver) | DC 12 V, 1 A |
Applications
The QWM 1970 HH system is ideal for live performances, karaoke, conferences, houses of worship and events where two wireless handheld microphones are required for reliable and high-quality audio.
Q&A
Q: Does this system include handheld microphones?
A: Yes, it includes two dynamic handheld wireless microphones.
Q: Is the system suitable for professional installations?
A: Yes, the receiver is rack-mountable and designed for professional AV setups.
Q: Can it operate licence-free?
A: Yes, when set to the 863–865 MHz frequency range, it can be used licence-free in the UK/EU.
