QWM 1970 BP Dual Channel UHF Beltpack Wireless Mic System
QWM 1970 BP Dual Channel UHF Beltpack Wireless Mic System
Free Next Working Day Delivery for orders over £150 (order by 3.30pm Mon-Fri).
Overview
The QWM 1970 BP Dual Channel UHF Wireless System delivers professional-grade wireless audio performance at an accessible price point. Designed for reliability and flexibility, this system includes two beltpack transmitters along with both headworn and lavalier microphones, making it ideal for presentations, performances and broadcast applications.
With true diversity reception, selectable UHF frequencies and a wide frequency response, the QWM 1970 ensures clear, stable and high-quality audio transmission in a variety of environments. The included 19" rack-mount hardware allows easy integration into professional AV setups.

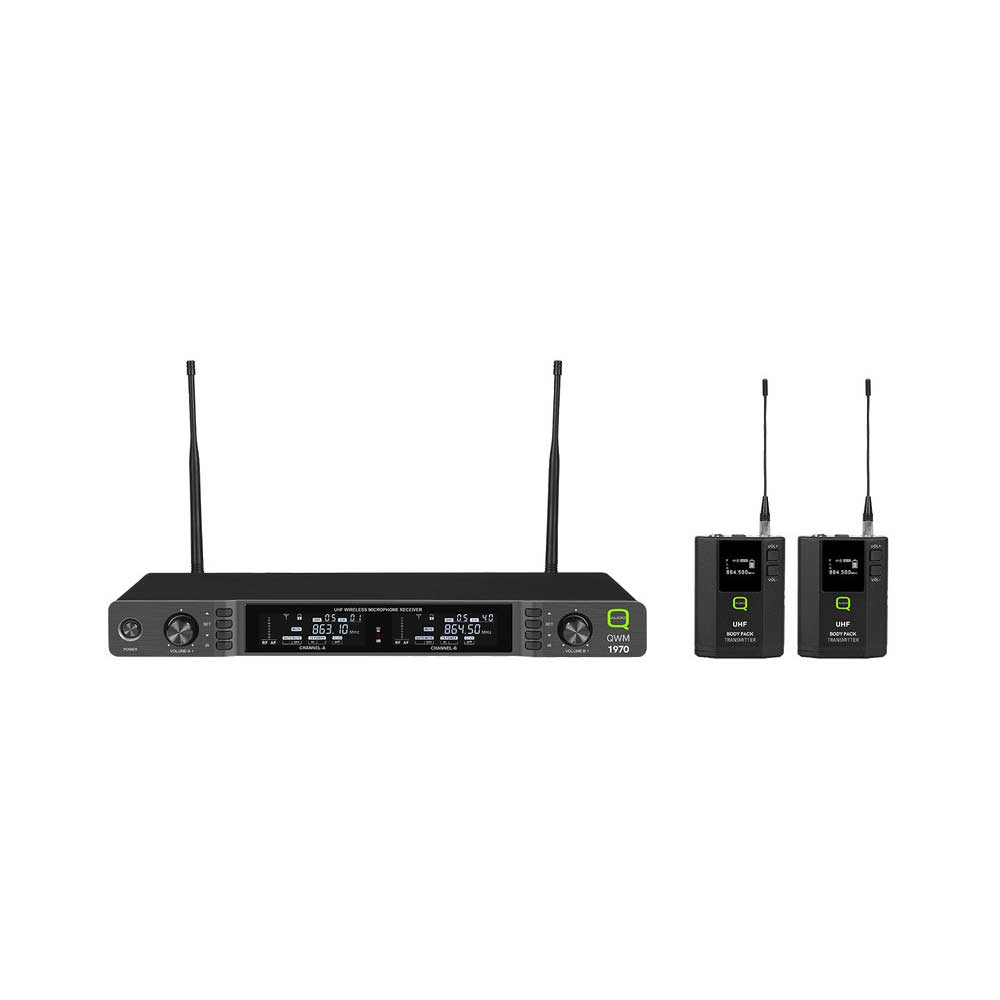

Complete Dual Beltpack System
The system includes two beltpack transmitters and multiple microphone options, offering flexibility for different applications such as speaking, theatre or live performance.

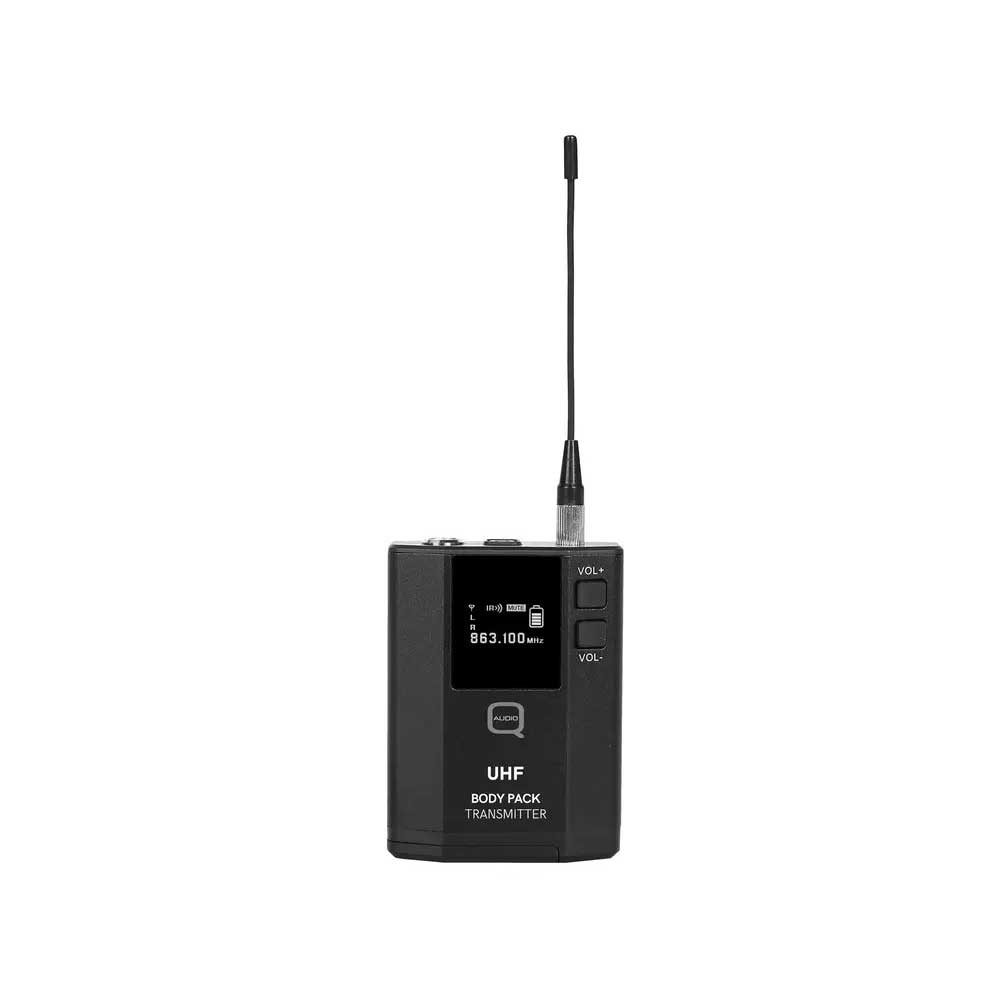

- 2 × beltpack transmitters included
- 2 × headworn microphones (TA-4 connector)
- 2 × lavalier microphones (TA-4 connector)
Professional Audio Performance
With a wide frequency response and excellent signal-to-noise ratio, the QWM 1970 delivers clear and natural audio reproduction across the full spectrum.
- Frequency response: 30 Hz – 20 kHz
- High signal-to-noise ratio up to 96 dB
- Low distortion <0.1%

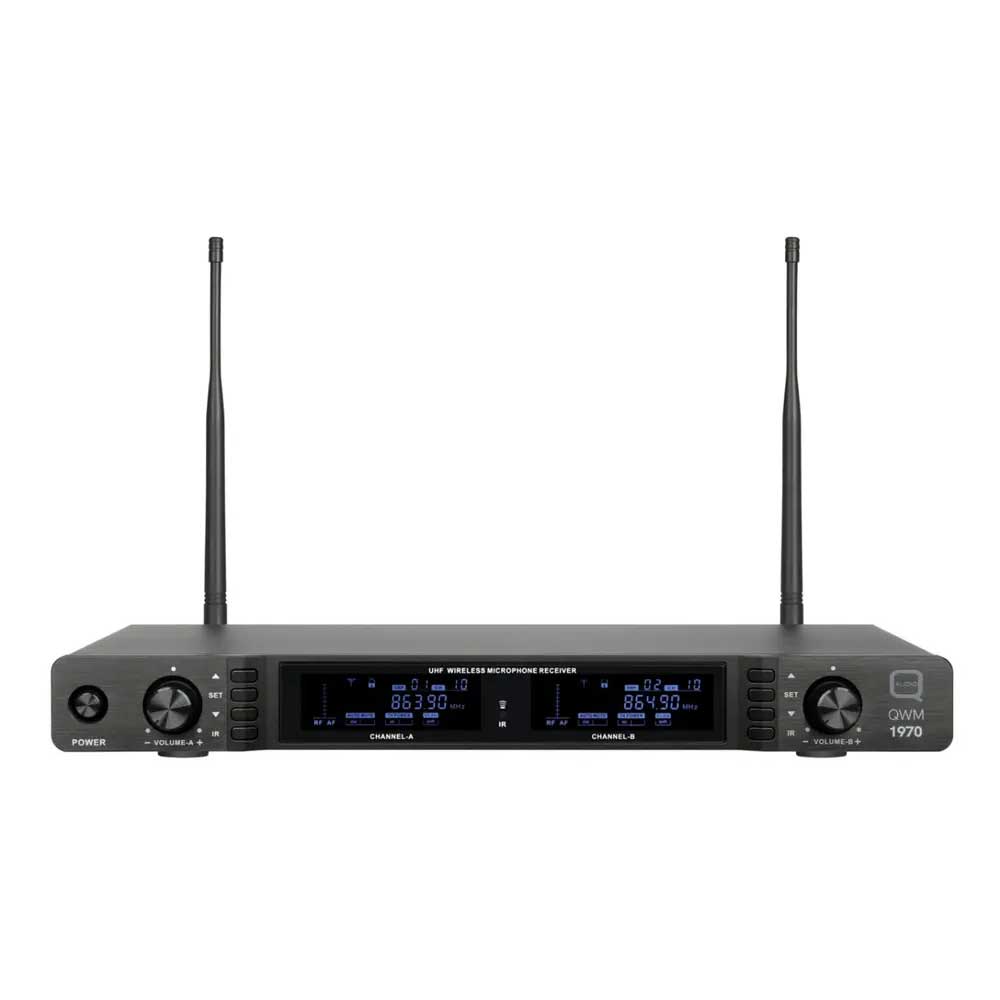

True Diversity Reception
The dual-channel receiver uses diversity technology to ensure stable RF reception, reducing dropouts and interference even in challenging environments.
- Dual-channel diversity receiver
- Improved signal stability
- Reliable performance for professional use
Flexible Frequency Options
The system operates on selectable UHF frequency bands, allowing users to choose the most suitable option for their region or application.
- Selectable frequencies: 863–865 MHz (licence-free) or 606–614 MHz
- IR sync for quick transmitter setup
- Adjustable bandwidth depending on frequency range
Rack-Mountable Design
The receiver includes 19" rack mounting hardware, making it easy to integrate into professional racks for installations, touring setups or fixed AV systems.
- 19" rack-mountable receiver
- Professional installation ready
- Rear-to-front antenna kit for convenience

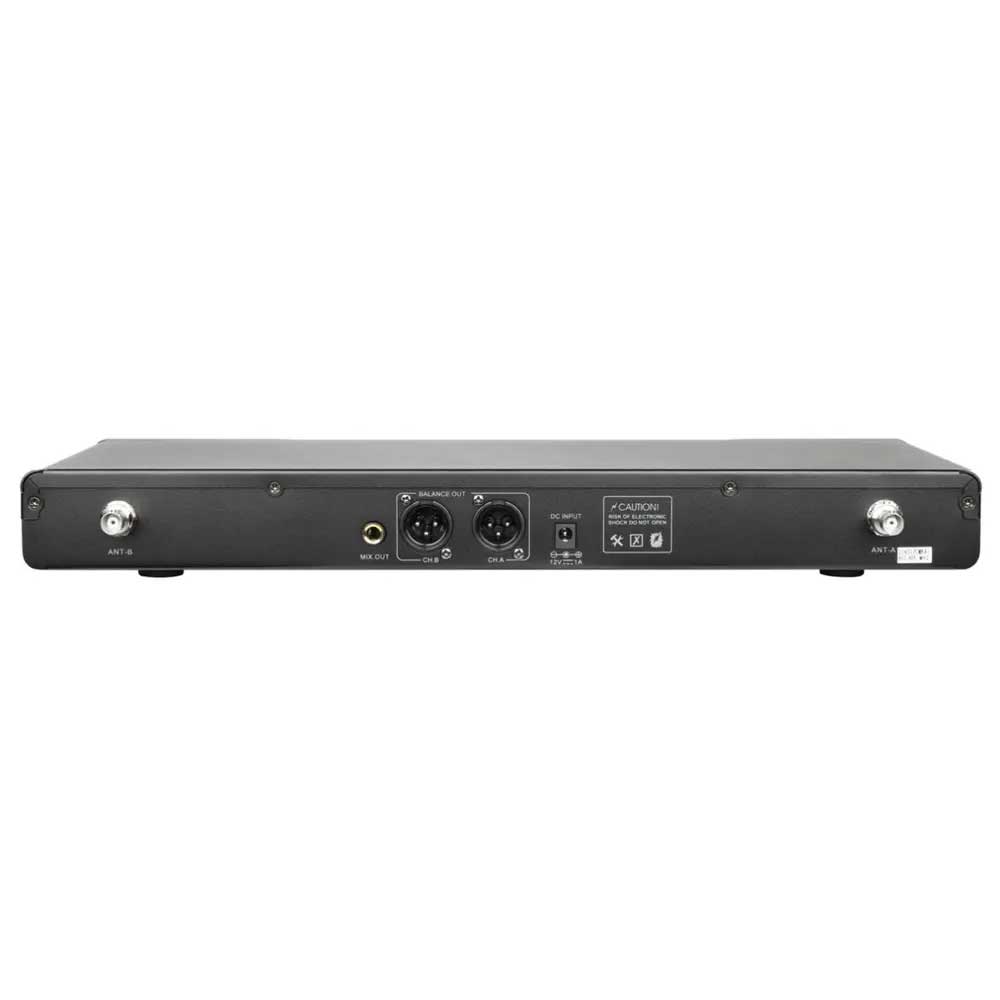

Versatile Output Connections
The receiver provides both balanced and unbalanced outputs, allowing connection to a wide range of mixers, amplifiers and audio systems.
- 2 × balanced XLR outputs
- 1 × mixed unbalanced 6.3 mm jack output
Key Features
- Dual channel UHF wireless system with beltpack transmitters
- Includes headworn and lavalier microphones
- True diversity receiver for stable signal
- Wide frequency response (30 Hz – 20 kHz)
- High signal-to-noise ratio for clear audio
- Selectable UHF frequency bands
- IR sync for quick setup
- Rack-mountable 19" receiver
- Balanced XLR and unbalanced outputs
Specifications
| Specification | Details |
|---|---|
| System Type | Dual channel UHF wireless system |
| Receiver Frequency Range | 863–865 MHz or 606–614 MHz |
| Bandwidth | 2 MHz or 8 MHz (frequency dependent) |
| Frequency Response | 30 Hz – 20 kHz ±2 dB |
| Signal-to-Noise Ratio | Up to 96 dB |
| Distortion | <0.1% |
| Receiving Sensitivity | -95 dBm |
| Audio Outputs | 2 × XLR (balanced), 1 × 6.3 mm jack (mixed) |
| Transmitter Power | Up to 30 mW |
| Battery Type | 2 × AA per transmitter |
| Battery Life | >5 hours |
| Power Supply (Receiver) | DC 12 V, 1 A |
Applications
The QWM 1970 BP system is ideal for corporate presentations, conferences, theatres, houses of worship, fitness instructors and live performances where reliable wireless audio and flexible microphone options are required.
Q&A
Q: Does this system include microphones?
A: Yes, it includes both headworn and lavalier microphones for each beltpack transmitter.
Q: Is the system suitable for rack installation?
A: Yes, the receiver includes 19" rack mounting hardware for professional installations.
Q: Can I use this system licence-free?
A: Yes, when set to the 863–865 MHz range, it operates licence-free in the UK/EU.
