Overview

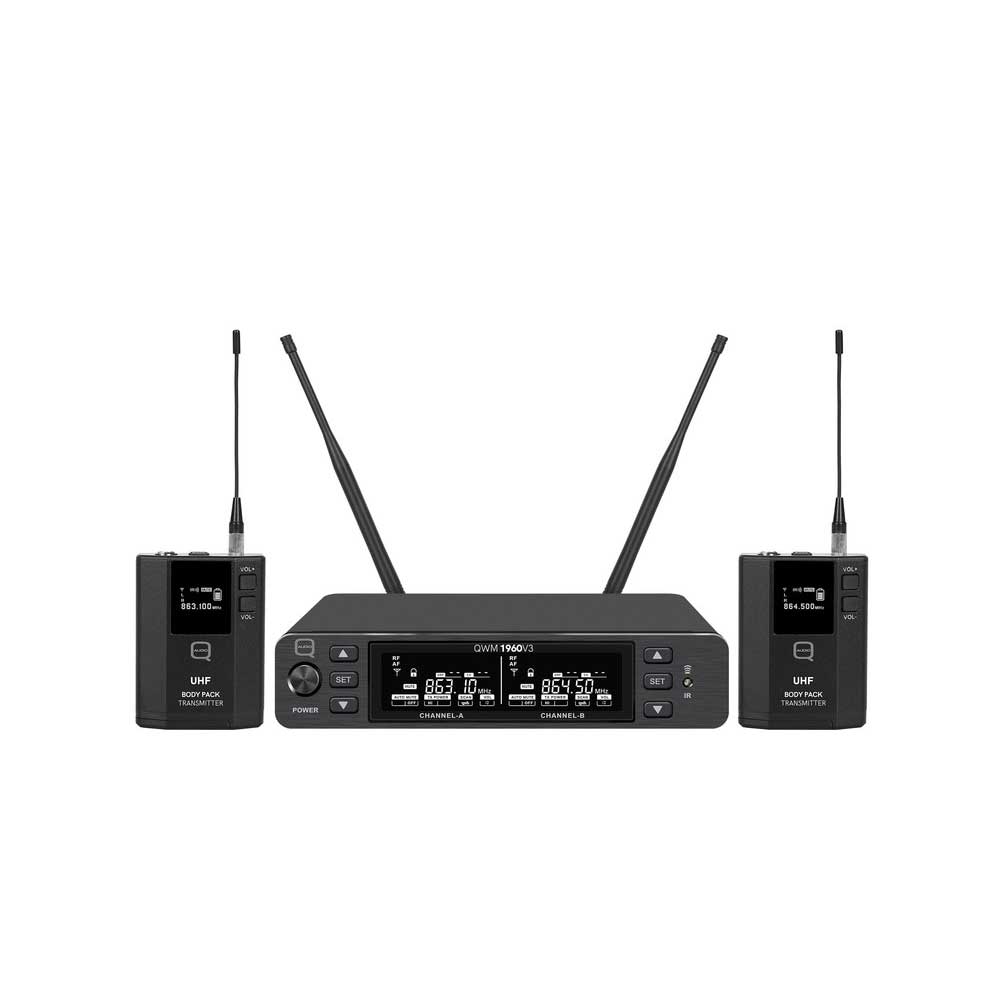

The QWM 1960 V3 BP Dual Channel UHF Wireless System is a versatile and professional solution designed for hands-free audio applications. Featuring dual bodypack transmitters and true diversity technology, this system delivers stable, interference-free performance for presentations, theatre, fitness and live events.
Supplied with lapel, headworn and instrument options, the QWM 1960 V3 BP offers maximum flexibility while maintaining high-quality audio reproduction. Its compact design, easy setup and reliable operation make it ideal for both professional and everyday use.
Dual Bodypack System

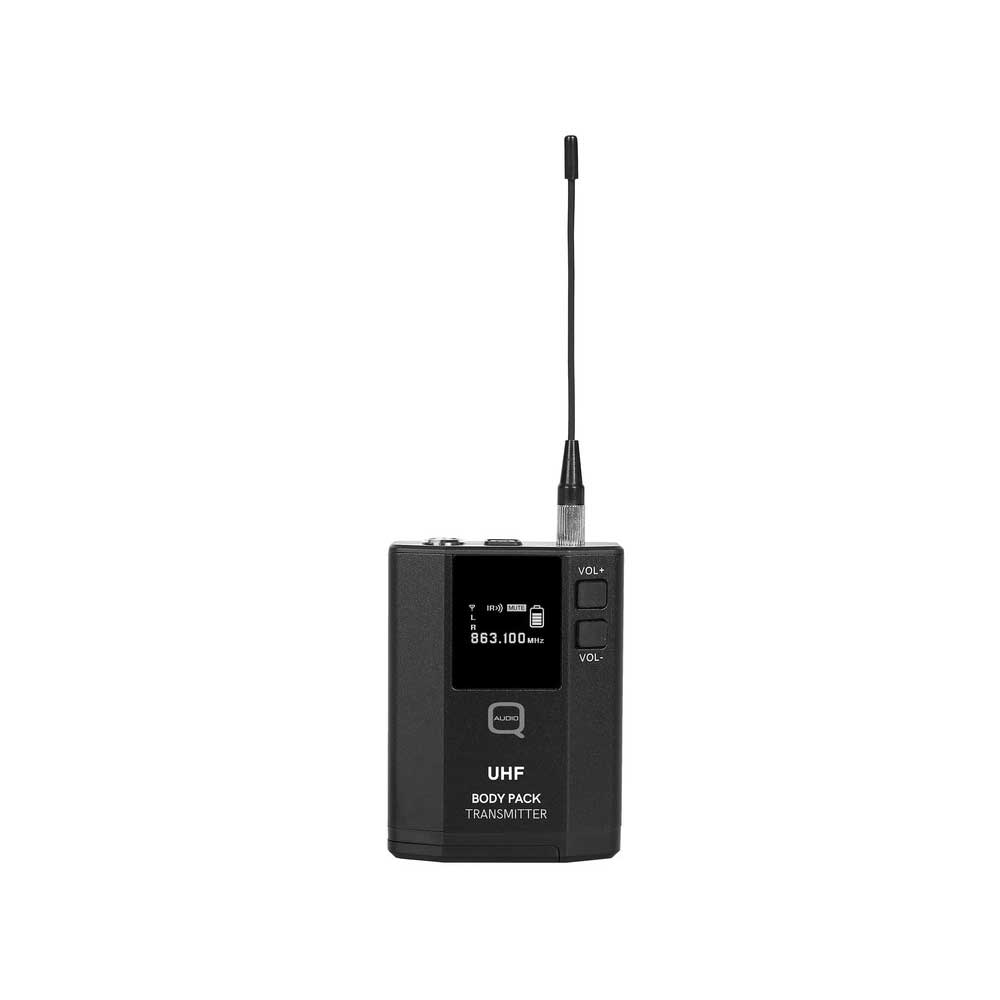

The system includes two compact bodypack transmitters, allowing two users to operate simultaneously with hands-free microphone options.
- 2 × bodypack transmitters
- TA4 (4-pin mini XLR) input connectors
- Secure clip design for reliable positioning
Complete Microphone & Instrument Package
Supplied with multiple accessories, the system is ready for a wide range of applications straight out of the box.
- Lapel (lavalier) microphone included
- Headworn microphone included
- Guitar/instrument cable included
True Diversity Technology
True diversity reception ensures consistent signal strength by automatically selecting the strongest RF signal, reducing interference and dropouts.
- Stable, interference-free performance
- Reliable in challenging RF environments
- Professional-grade wireless operation
Professional Audio Performance
The QWM 1960 V3 BP delivers clear, natural and detailed sound thanks to its wide frequency response and high dynamic range.
- Frequency response: 30 Hz – 20 kHz ±2 dB
- Dynamic range: 96 dB
- Low distortion: <0.1%
Simple Setup with IR Sync
Fast and easy pairing between transmitters and receiver is achieved using the integrated IR sync function.
- Quick transmitter–receiver synchronisation
- Easy frequency matching
- Minimal setup time
Flexible UHF Operation
Designed for UK use, the system supports both licence-free and licensed frequency ranges, offering flexibility for different setups.
- Channel 70: 863–865 MHz (licence-free)
- Channel 38: 606–614 MHz (licensed)
- Auto frequency scan for optimal channel selection
Clear Displays & Monitoring

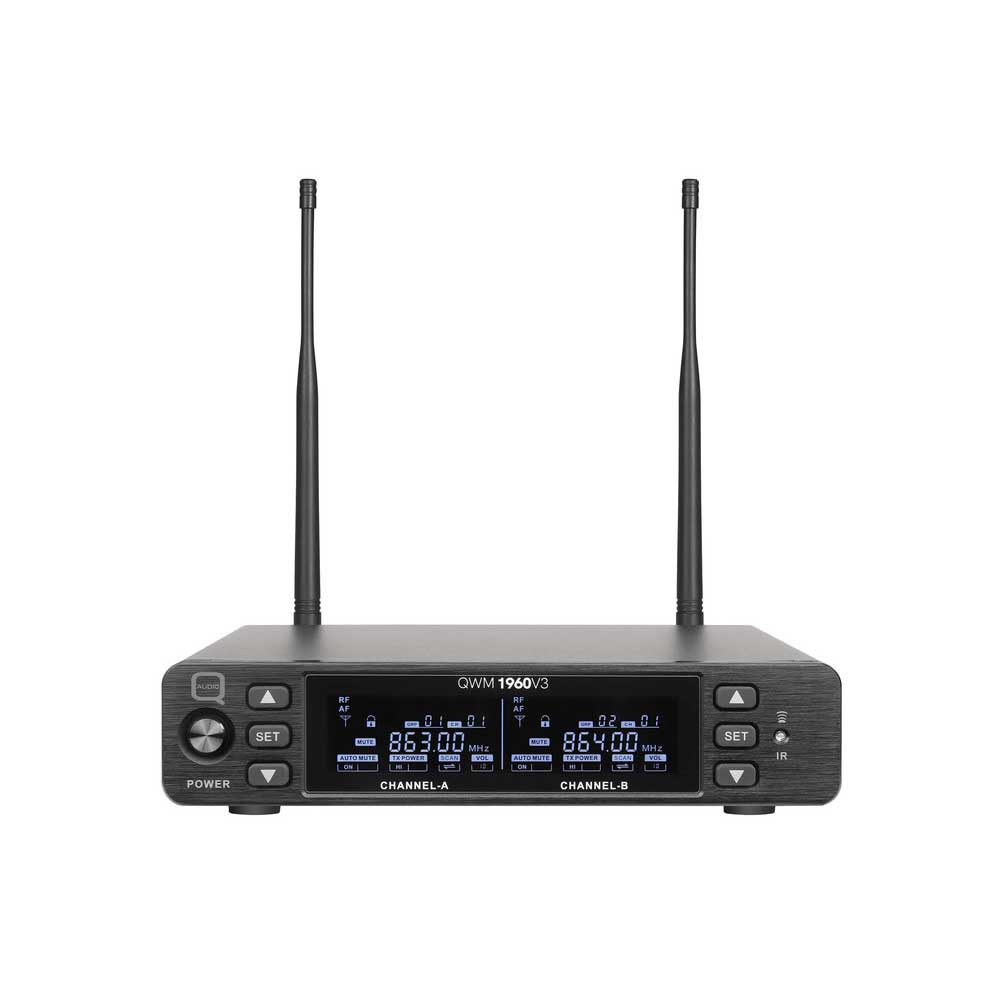

Both transmitters and receiver provide clear visual feedback for easy monitoring and control during operation.
- OLED display on bodypack transmitters
- RF and AF level indicators on receiver
- Battery status and channel information display
Durable & Compact Design
Built for professional environments, the system features a compact yet robust design suitable for regular use across various applications.
- Lightweight and discreet bodypack transmitters
- Durable construction for long-term reliability
- Suitable for stage, fitness, theatre and corporate use
Key Features
- Dual channel UHF bodypack wireless system
- True diversity technology for stable signal
- Includes lapel, headworn microphones and guitar cable
- Wide frequency response (30 Hz – 20 kHz)
- High dynamic range and low distortion
- IR sync for fast and easy setup
- Auto frequency scan function
- Licence-free and licensed frequency options
- Balanced XLR and unbalanced outputs
- Compact and durable design
Specifications
| Specification | Details |
|---|---|
| System Type | Dual channel UHF bodypack wireless system |
| Technology | True Diversity |
| Frequency Range | 863–865 MHz (licence-free) or 606–614 MHz (licensed) |
| Frequency Response | 30 Hz – 20 kHz ±2 dB |
| Dynamic Range | 96 dB |
| Distortion | <0.1% |

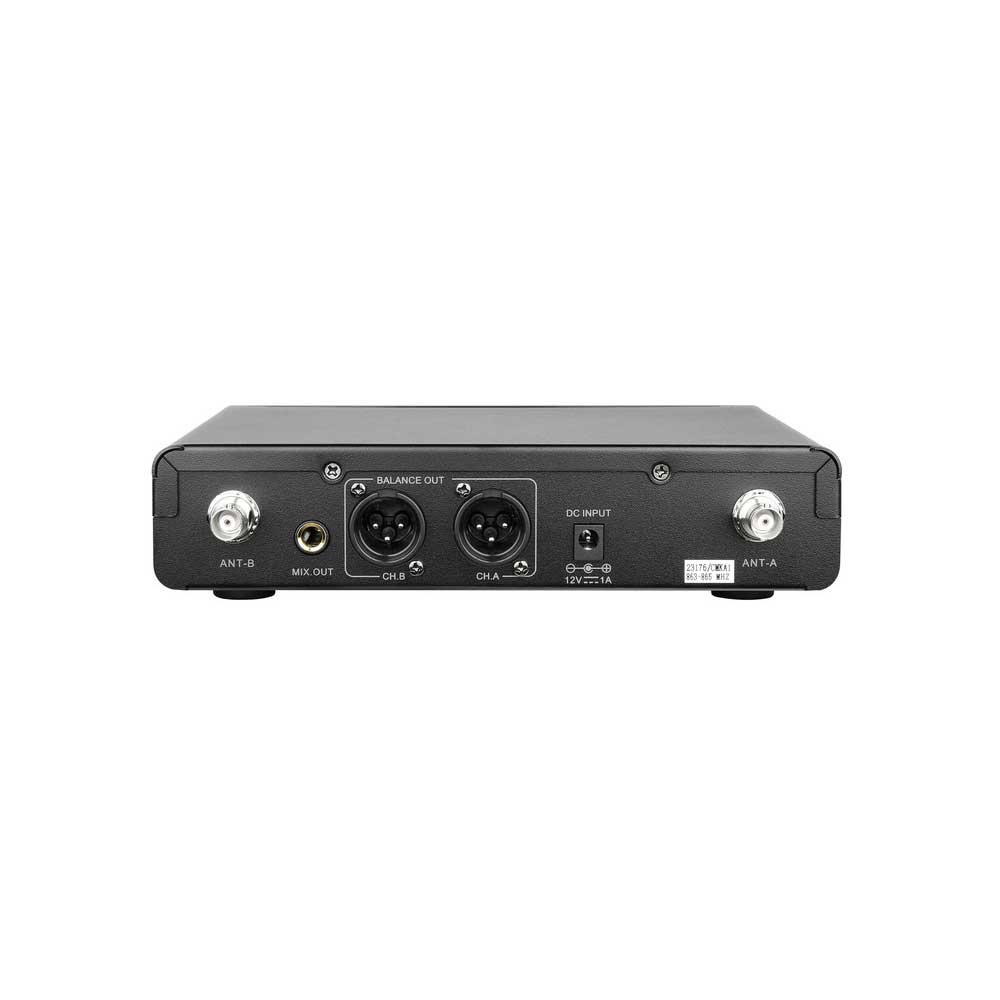

| Audio Outputs | 2 × XLR (balanced), 1 × 6.35 mm jack (unbalanced) |
| Battery Type | 2 × AA per transmitter |
| Battery Life | >5 hours |
Applications
The QWM 1960 V3 BP system is ideal for conferences, theatre productions, fitness instructors, houses of worship, public speaking and live performances where hands-free or instrument wireless audio is required.
Q&A
Q: What microphones are included?
A: The system includes both a lapel (lavalier) microphone and a headworn microphone, plus a guitar cable.
Q: Is it suitable for licence-free use?
A: Yes, it can operate licence-free on Channel 70 (863–865 MHz). Channel 38 requires a licence.
Q: Can it be used for instruments?
A: Yes, the included guitar cable allows wireless connection for instruments.
