Overview

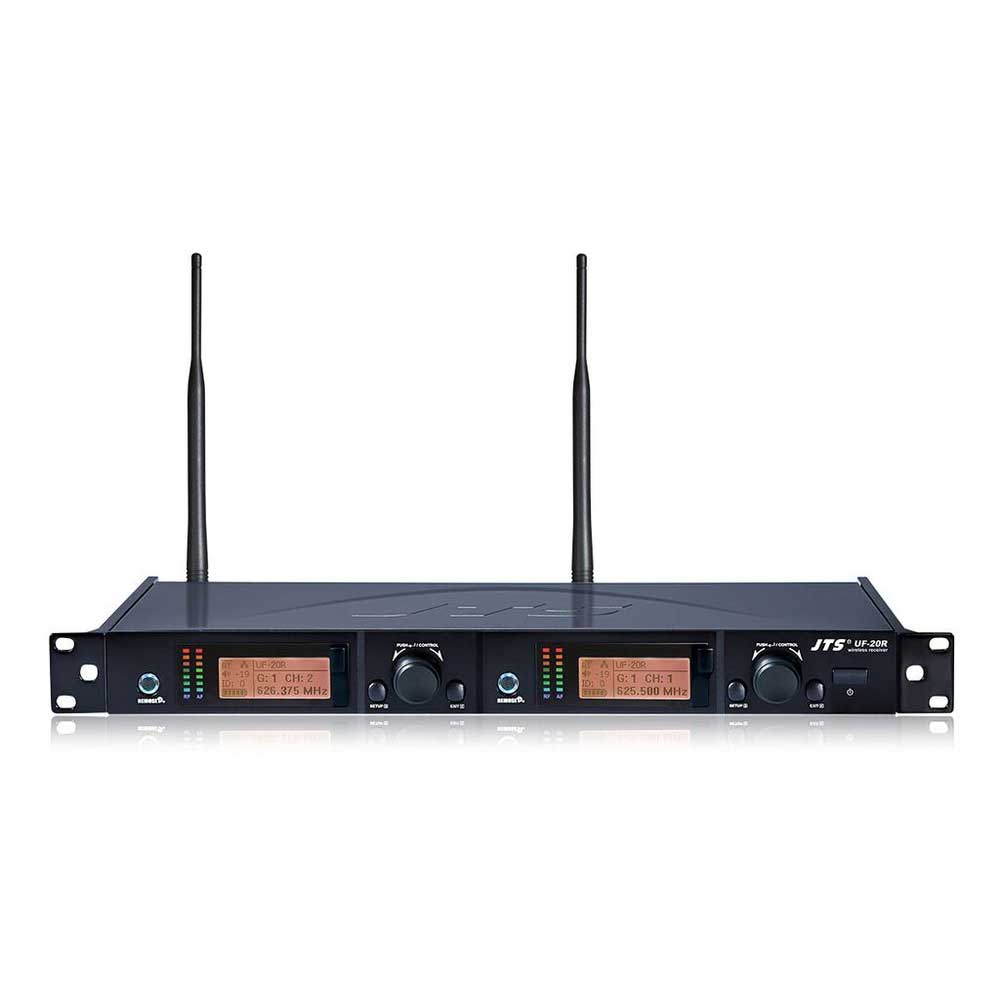

The JTS UF-20R is a flagship dual-channel UHF wireless receiver designed for demanding professional applications where RF stability, audio quality and system scalability are critical. Featuring genuine True Diversity reception and up to 75 MHz wideband operation, it is ideal for touring systems, theatres, large venues and high-channel-count installations.
With operating distances of up to 200–480 metres (environment dependent), integrated antenna and mains cascading, and advanced REMOSET synchronisation, the UF-20R delivers powerful performance with fast, reliable setup.
True Diversity & Wideband Performance
True Diversity technology uses dual RF sections to continuously compare incoming signals and automatically select the strongest source, reducing dropouts in challenging RF environments.
The 60–75 MHz super-wideband design provides up to 2,400–3,000 selectable frequencies, offering exceptional flexibility for large multi-channel wireless systems.
REMOSET One-Touch Synchronisation
JTS REMOSET ultrasonic technology enables fast transmitter pairing with one button press. It synchronises frequency, RF power, sensitivity, low-cut, key lock and user name, simplifying setup across complex systems.
Professional Rack Integration

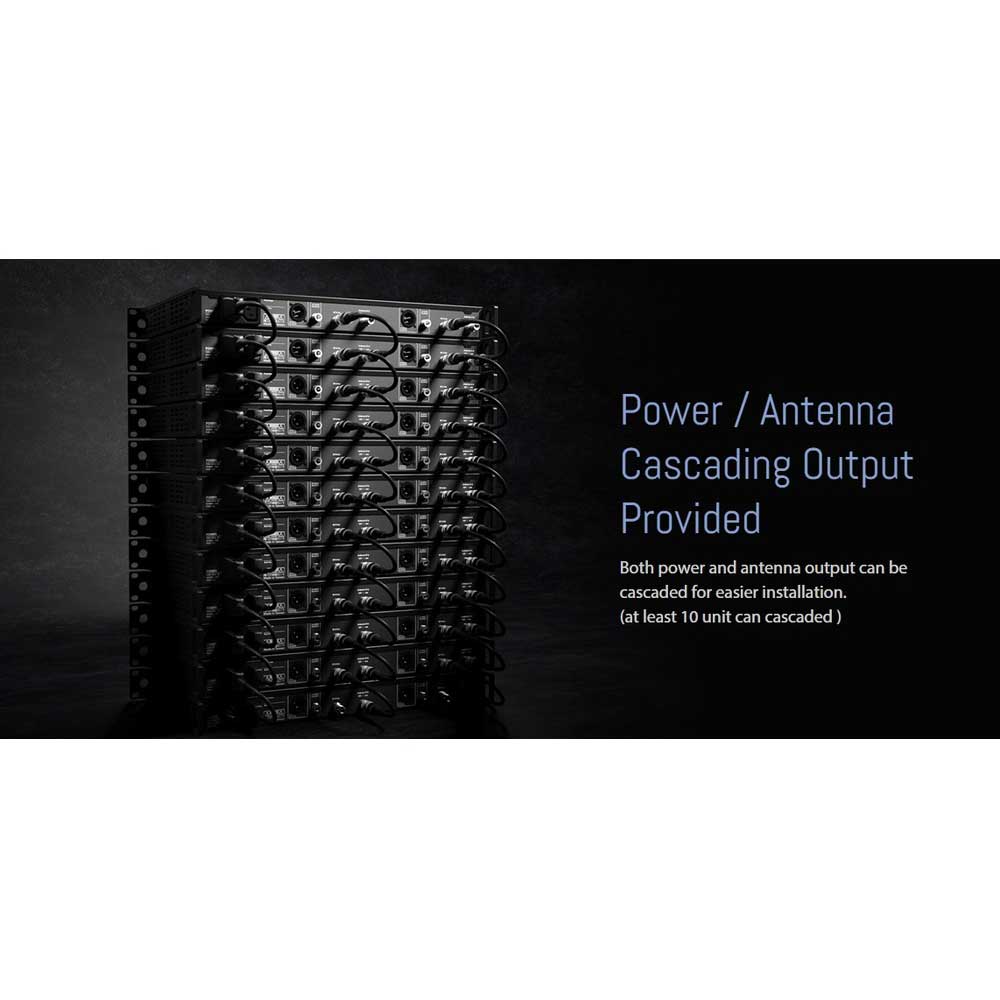

Housed in a robust 1U metal rack chassis, the UF-20R includes integral antenna and mains cascading to streamline multi-receiver rack builds and reduce cabling complexity.
Compatible transmitters include the JSS-20 handheld and UF-20TB beltpack, both with rugged aluminium construction. The JSS-20 is supplied with the high-performance SAM-8WLN capsule for clear vocal reproduction and reduced handling noise.
Monitoring & Control
The LCD display shows group, channel, frequency, antenna status (A/B), RF/AF levels, battery status, REMOSET ID and user name. Front-panel controls allow frequency scan, audio level, output pad, volume and lock adjustments.
Key Features
- Dual-channel professional UHF receiver
- True Diversity reception
- Up to 75 MHz wideband operation
- Operating range up to 200–480 m
- REMOSET ultrasonic synchronisation
- Integral antenna and mains cascading
- Low companding noise design
- Compatible with JSS-20 & UF-20TB transmitters
- 1U 19" rack-mount chassis
Specifications
| Specification | Details |
|---|---|
| Frequency Preparation | PLL Synthesized Control |
| Bandwidth | 60–75 MHz |
| Frequency Range | 606–681 MHz (region dependent) |
| Receiving Mode | True Diversity |
| S/N Ratio | >108 dB (A) |
| THD | <0.5% @ 1 kHz |
| Frequency Response | 50 Hz – 18 kHz |
| Audio Outputs | 2 × XLR Balanced, 2 × 6.3 mm Jack |
| AF Output Impedance | 600 Ω |
| Power Supply | 100–240 V AC or 12 V DC |
| Chassis | 1U 19" Metal Rack |
| Dimensions | 480 × 45 × 260 mm |
Q&A
Q: Is the UF-20R suitable for large multi-channel systems?
A: Yes, its wideband operation and cascade functions make it ideal for scalable professional installations.
Q: What does REMOSET synchronise?
A: Frequency, RF power, sensitivity, low-cut, key lock and user name settings.
Q: Is it rack-mountable?
A: Yes, it fits a standard 1U 19-inch rack.
Q: Which transmitters are compatible?
A: JTS JSS-20 handheld and UF-20TB beltpack transmitters.
