Overview
The JTS UF-20 4 Way All Racked Up Handheld System is a professional four-channel wireless microphone solution designed for live sound and installed applications where RF stability and audio quality are critical. Supplied with 4 x JSS-20 dynamic handheld transmitters, this system provides dependable multi-channel performance in a fully rack-integrated format.

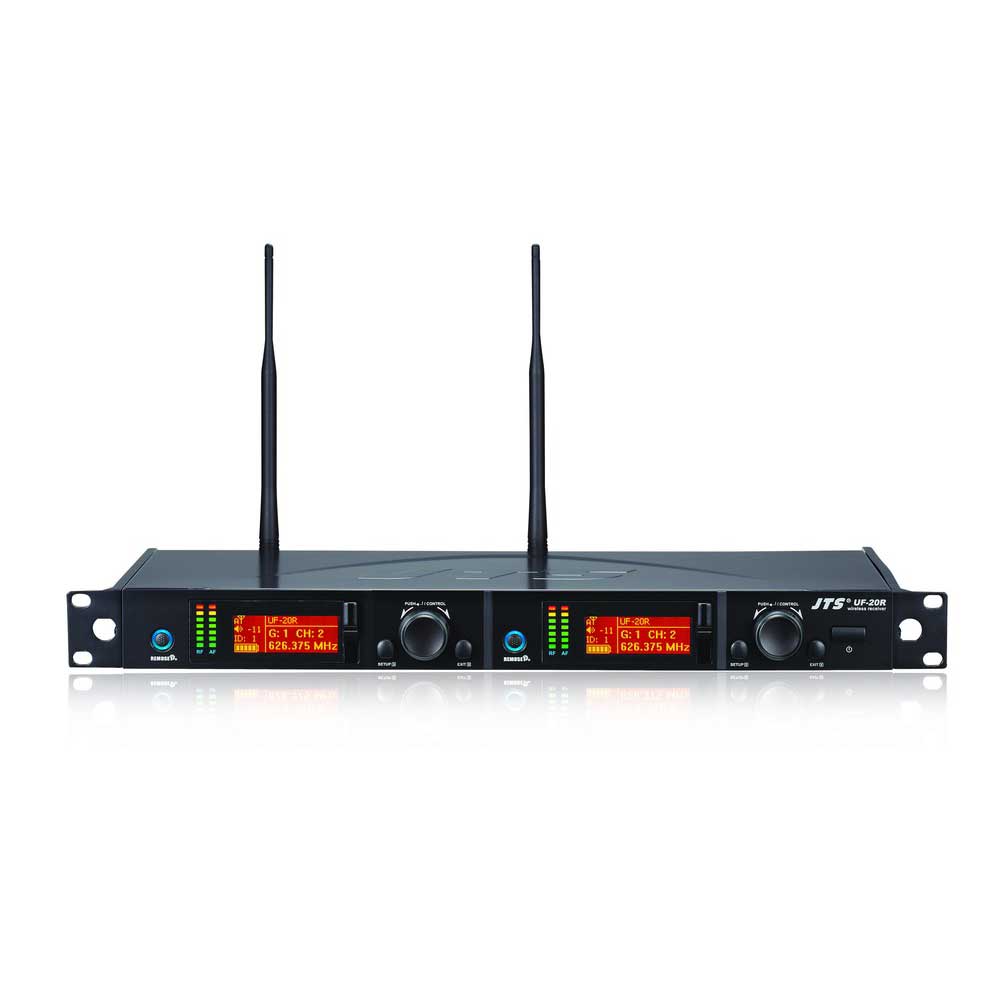

Built around two UF-20 dual-channel True Diversity receivers, the system delivers four simultaneous wireless channels with super-wideband operation and extended working range.

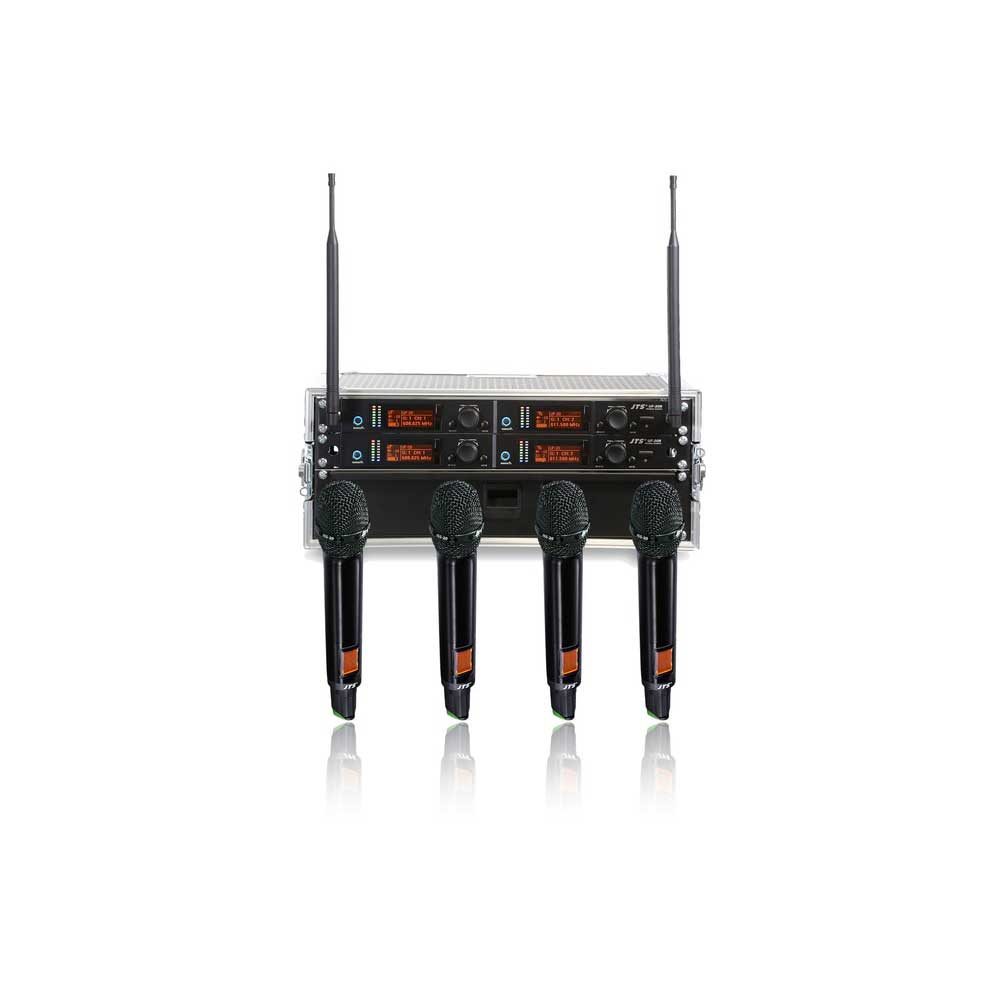

System Configuration
- 2 x UF-20 Dual Channel True Diversity Receivers (4 channels total)
- 4 x JSS-20 Professional Handheld Transmitters
- Shallow flight case with receivers pre-racked
- Lockable metal rack drawer for accessories
- Rear-to-front antenna cable set for front rack antenna mounting
Supplied in original packaging and ready for final user assembly.
Professional RF Performance
The UF-20 receiver platform features True Diversity reception across a super-wideband (60–75 MHz), reducing dropouts and ensuring reliable multi-channel operation in complex RF environments. Under optimal conditions, operating distances of approximately 200–480 metres are achievable.
JTS REMOSET technology enables one-touch synchronisation of frequency, RF power, sensitivity, low cut and key lock settings directly from the receiver for fast and consistent system setup.

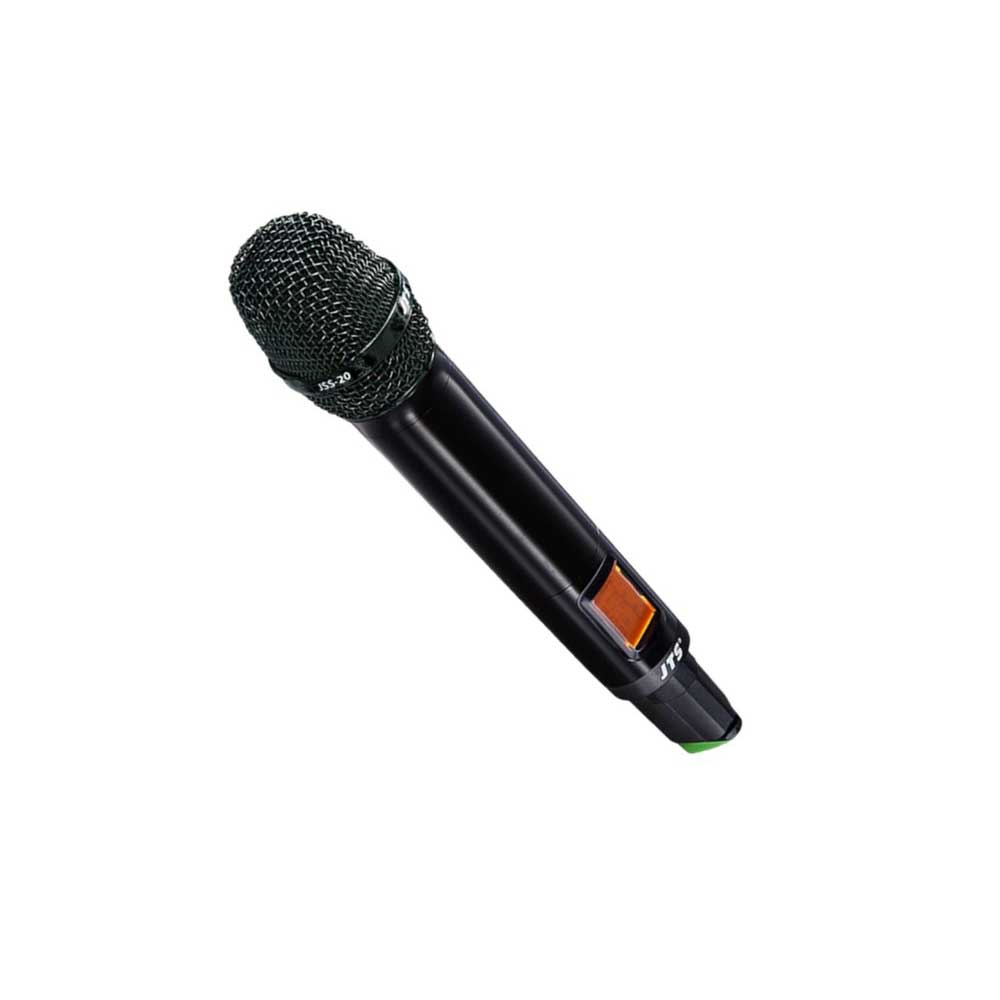

JSS-20 Handheld Transmitters
- Fitted with JTS SAM-8WLN dynamic capsule
- Interchangeable capsule design for tonal flexibility
- Super-wideband operation
- Selectable RF output (High/Low)
- Low cut function
- PLL synthesised tuning for frequency stability
- LCD display with group, channel, frequency and battery status
- REMOSET compatible
- Powered by 2 x AA batteries (slot-in charging compatible)
Receiver Specifications (Per UF-20 Receiver)
| Specification | Details |
|---|---|
| Receiving Mode | True Diversity |
| Bandwidth | 60–75 MHz Wideband |
| S/N Ratio | >108 dB (A) |
| Frequency Response | 50 Hz – 18 kHz |
| Audio Outputs | Balanced XLR & 6.3 mm Jack |
| Chassis | 1U Standard Metal |
Applications
Ideal for live vocal performances, conferences, corporate presentations, houses of worship, schools and touring productions where four reliable wireless handheld microphones are required with maximum RF stability.
Q&A
Q: Can additional channels be added?
A: Yes. The UF-20 platform supports antenna and power cascading, allowing expansion for larger multi-channel systems.
Q: Are the capsules interchangeable?
A: Yes. The JSS-20 features an interchangeable capsule design for flexibility across different vocal styles and applications.
Q: Is this suitable for touring?
A: Yes. The metal chassis, rack integration and True Diversity reception make it suitable for professional touring and installed environments.
